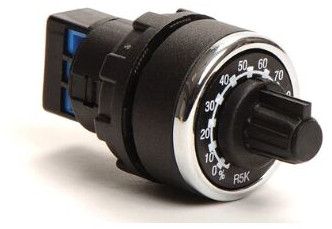

B Series Plastic 10 KΩ 22 Mm Potentiometer BPR10K

Dia : 22 mm Dielectric Strength (Contact-Contact) : 1750 Vrms Isolation Resistance : 10 MΩ min. (500V DC) Operating Temperature : -15 / + 80 °C Pollution Degree : 3 Protection Degree : IP65 Cable Section : 0.75-1.5 mm2 Screw Torque : 1,5 Nm Maximum Current : 12,20 mA Maximum Power : 1,5 W (70ºC) Resistive Value : 10 kΩ Spin Angle : 270° Serial : B Series Plastic
