Superlative engineering, unique bidiractional vibration at affordable prices. Low maintenance technology jointly developed with BMTPC (Government of India). No large....
Superlative engineering, unique bidiractional vibration at affordable prices. Low maintenance technology jointly developed with BMTPC (Government of India).
No large expensive concrete floor is required.
Unparalled cost effective quality production. Multi product and multified (Fly-Ash or Concrete) to match growing demand of paver, bricks and hollow blocks etc. with both precision & variety.
Large number of satisfied customers in India & Abroad.
Option of special application equipment to match your needs.
Articles produced are of uniform shape and precise dimensions.
Â
1.
Effective Mould Area (mm)
450L x 450W
2.
Maximum Mould/ Block Height (mm)
200mm
3.
Electrical Power 3Ph 440 Volt
10.50 HP
4.
Vibrator No(s) HP./Frequency
2/2+1/3000
5.
No. of Hydraulic Cylinders
5
6.
No. of Bricks/stroke (230x110x75) or Block (400x200x150/200)
8/2
7.
Cycles/Minute
2-3
8.
Production Capacity of Bricks/ shift (Blocks 400x200x150/200)
4000 - 5000 (1000 - 1200)
9.
Product Mix. in Concrete or Fly Ash/FAL G
Bricks Hollow/Solid Blocks, Interlocking Paver
10.
Feeding of Raw Materials
Push Feed Manually
11.
Placing of Pellets
Individual by hand
12.
Removal of Loaded Pallets
By Hydraulic Jack
13.
Vibro Hydraulic Flow Combined Pressure (Appx.)
40 MT.
14.
Type of Raw Material could be utilised
Fly Ash + Lime + Cement + Concrete
15.
Weight (Approx.) without Accessories
2200 Kgs.
* All specifications are subject to change.
Share your requirements for a quick response!
Tell us what you need?

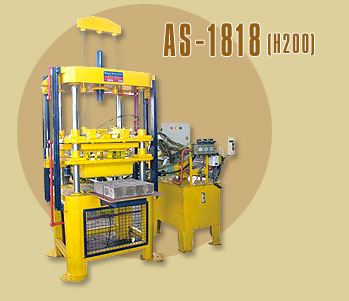

Looking for BI- Directional Hydraulic Vibro Press?
