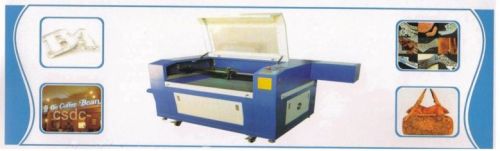

Laser Name Plate Engraving Machine (SMT-15)

₹ 3 Lakh / Piece

Automatic GradeAutomatic
Driven TypeElectric
Power1-3kw
ApplicationFor Engraving
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Product Details

Availability100-200kg
Country of Origin110V
ApplicationFor Engraving
Automatic GradeAutomatic
Power1-3kw
Driven TypeElectric

We have developed robust payment processing procedures to facilitate safe and quick exchange of the trade. We are reckoned for the quality that we offer in our products. And, for maintaining it, we make use of the world-class raw material for manufacturing the products.

Applications : Applicable Industries - Advertisement, Gift. Army & Police Pocket Name Plate, Toys, Computers. Garments, Model Cutting, Packaging, Paper Industry.
Standard Features :

Configure - Sealed 40W, CO2 Glas tube
Honey Comb Table.
Owns Functions of restoring from power off, Continuation on break point.
Transmit files directly in Corel Draw, AutoCAD etc.
Adopt international linear rail, more precision.

Specifications

Model	SMT-15
Working Area	450mm*450mm
Laser Power	40 W
Engraving Speed	0-2400mm/ min
Reposition Accuracy	±0.1 mm
Working Voltage AC	110-220V±10%, 50-60 Hz
Consuming Power	<1,000W
Working Temperature	0+45 Deg C
Working Humidity	8-95%
Minimum Latter Size	English : 1 x1 mm
Supported File Format	BMP, HPGL, PLT, DST, DXP, And AI
Driving System	Stepper Motors
Laser Tube Cooling Type	Water-Cooling or cooling machine and protection System
Other Auxiliary Equipment	Exhaust- fans and air- exhaust pipe
Compatible Software	CorelDraw Aucco CAD Photoshop
Laser Tube Type	Sealed CO2 glass laser tube
Weight	150Kg, Approx.
