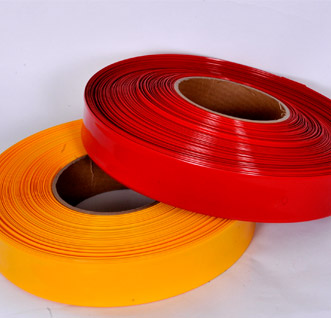

Busbar Heat Shrinking Sleeve

Shrinking Sleeves" used to Insulate “Bus Bars and Conductors” provide excellent insulation with a High Dielectric Strength & a Good Retention of Dielectric Strength even under Wet Conditions. The sleeves are manufactured from high quality non tracking cross-linked polyolefin material. Meets ANSI C37.20.2 standards for MV switchgear application up to 36 KV.

Physical & Electrical Properties

Tensile Strength: > 300 kg/Sq. Cm.
Ultimate Elongation : > 250 %
Insulation Resistance : 3 x 106 Mega ohms (at R/T)
Dielectric Strength : 12 KV ( B.D.V. : 15 KV )
Shrink Temperature : 120^o Centigrade
Shrink Ratio : MD - 10 % TD - 40 %
Continuous Operating Tempt : - 05 to 110^o Centigrade
Corrosive effect - Non Corrosive : Resistant to acid, alkalis & oil
Fire Retardation : Self-extinguishing, Non flammable
Type : Creased type
Sizes Available : L/F size 41mm to 240 MM
Bus Bars Size : 25 x 6 to 200 x 12 MM
Thickness : 0.20 to 0.40 MM
Std. Color : Red, Yellow, Blue & Black
Std. Length / Roll : 50 to 100 meters
Shelf Life : 6 months, stored below 25^o Centigrade
