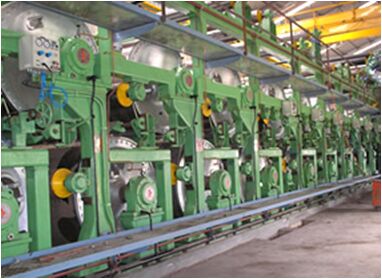

    C I Dryers AND YANKEE CYLINDER

    • Supply TypeManufacturer, Exporter, Supplier, Retailer
    • Preferred Buyer Location All over the world

    Our drying cylinder are used in paper industry for the manufacture of paper, board, speciality papers & tissue. Our alloyed cast iron cylinder are used for installations after size press, after....
    View More Details
    Send Enquiry

    Company Information

    • calendar Member Since 7 Years
    • building Nature of Business Retailer

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    • Product Details

    • Company Details

    no_img_icon

    • Our drying cylinder are used in paper industry for the manufacture of paper, board, speciality papers & tissue.
    • Our alloyed cast iron cylinder are used for installations after size press, after cooling applications,
    • The food industry uses drying cylinder in the manufacture of powders & baby foods.
    • The chemical industry, they are used for manufacture of foils, films & flakes.
    • A Yankee dryer is a pressure vessel used in the production of tissue paper.
    • On the Yankee dryer, the paper goes from approximately 42–45% dryness to just over 89% dryness.
    • In industry, MG cylinders or Yankee dryers are primarily used to remove excess moisture from pulp that is about to be converted into paper.
    • The Yankee cylinder can be equipped with a doctor blade and sprayed with adhesives to make the paper stick. Creping is done by the Yankee’s doctor blade that is scraping the dry paper off the cylinder surface thereby crêping the paper.
    • The crinkle (crêping) is controlled by the strength of the adhesive, geometry of the doctor blade, speed difference between the yankee

    Specification:

    • Shell thickness-25-32mm
    • Hardness 190-240HP
    • Maximum width –Dryer cylinder- 10mtrs yankee cylinder- 8mtr
    • Operating speed up to 1000m/min
    • Hydraulically tested up to 10kg/cm(g)pressure
    • High quality vertical castings
    • Ends flanges bolted
    • Surface furnish up to .80 Ramun
    • Dynamically balanced
    • Inside machined
    • Man holes provided with or without rope grooves
    • Diameter : 1. Dryer cylinder upto 2000mm
    1. Yankee cylinder 4200mm
