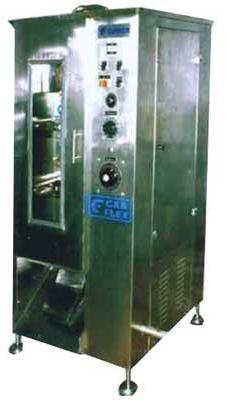

Cannon-1000-LPP Pouch Filling Machine

We provide Viscous Pouch Filling Machine that is mechanically operated to pack viscous liquids. Our Fully Automatic Viscous Pouch Filling Machine is available with mono block centrifugal pump that is controlled by VFD, Clutch, and Break Filling System. The machine is based on heavy duty angular structure which is wrapped with SS cabinet having all contact parts made of stainless steel. Ideal For : Viscous liquids Dairy Ghee Paints Edible vegetable oil Fats Vanaspathi Other industrial viscous liquids Specifications Feeding head Variable drive mono block centrifugal pump controlled with Clutch & break filling system Production Speed 12-15 sachets min. Packing range 250-1000 ml. Film Width up to 325 mm. Film Thickness 80 to 100 micron. Film Material Co-extruded poly film. Sealer heating system Impulse only. Inner Core Dia. of Film Roll 70mm. Outer Dia. of the film Roll upto350mm. Pouch Style Centre seal finover lap pillow pouch. Pouch Width up to 150 mm Pouch Length up to 240 mm. Power Consumption 3.5 kW Hour. Peak Power 5kW. Power requirement Single three Phase, 230415 V, 50Hz Pouch Counter Provided. Date printing Device Optional. Cooling water 100 lthr @ 10oC. Machine Dimensions 2200 (H) x 920 (W) x 750 (D) Net Weight 650 kgs (approx).
