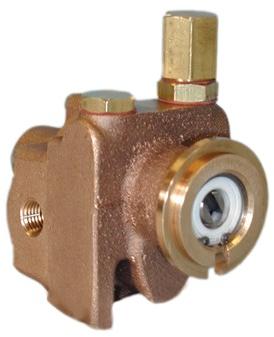

Carbonator Motor Mounting N91

The carbonator motor mounting uses a circular clamp, similar to a hose clamp, as means of attaching the pump to a specially machined hub on the motor. This concept was first developed for the vending machine industry to pump carbonated beverages in soft drink dispensers. The main advantages are compactness and economy due to the elimination of the adapter casting. Carbonator motors are readily available from electric motor distributors.
FEATURES
Bronze Body, Stainless Steel Shaft
Nitrile Mechanical Seal (fluoroelastomer optional)
Self-lubricating Carbon Bearings
Carbonator Motor Mount
Bronze Spur Gears
200 PSI capability
Superior to Vane Pumps
LIQUIDS & TEMPERATURES
Bronze pumps are suitable for water, oil, and mild chemicals in the pH-range from 4-10. Viscous liquids may be handled with carbonator pumps up to a viscosity of 300 SSU. Higher viscosities require a pump speed lower than 1725 RPM, which is currently not available in carbonator motors. Liquids containing abrasives, solids, powders or pigments are highly detrimental to pump life and must be avoided. The recommended liquid temperature range is from 32o F to 140oF. If more extreme temperature conditions exist, factory should be consulted. Allowing the liquid to freeze in the pump can cause damage.
