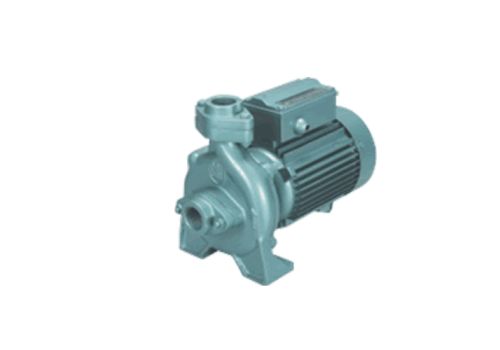

Centrifugal Monoblock Pumps

Get Latest Price

Mechanical Seal (Carbon & ceramic)Maximum suction lift in metre
SPECIFICATIONSPower range
Single phase 200-240V, 50Hz, A.C Supply, Permanent split capacitor (CSR) incorporated with thermal cutout relay (motor Protector). Three phase, 380 -415V, 50Hz, A.C SupplyMaximum flow rate
33o cMaximum ambient temperature
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Product Details

IP 44/ IP 54Class of insulation
Clockwise viewed from driving endType of duty
7Maximum liquid temperature
A & BDirection of rotation
40o cNominal Pump size in inches(Suction & Delivery)
0.37 kW – 2.2 kW (0.5HP-3 HP)Frequency / Speed
S1 (continuous)Sealing
33o cMaximum ambient temperature
5.25 BarDegree of Protection
50 Hz / 2880 RPMVersion
Mechanical Seal (Carbon & ceramic)Maximum suction lift in metre
17.8 IPs (64 M3 / Hr)Maximum total head
Single phase 200-240V, 50Hz, A.C Supply, Permanent split capacitor (CSR) incorporated with thermal cutout relay (motor Protector). Three phase, 380 -415V, 50Hz, A.C SupplyMaximum flow rate
SPECIFICATIONSPower range
52.5 metresMaximum Operating Pressure

Centrifugal Monoblock Pumps - ACM Series

C.R.I. Centrifugal monoblock pump's volute chamber and impellers are designed to give the best possible hydraulic efficiency and good suction lift. Sealing is by means of a bellows mechanical seal made of carbon & ceramic is fitted over the shaft ,which is ground to close tolerance. These pumps are power-driven by a totally enclosed fan cooled A.C. Induction two pole motor. Motor stator is made of low watt loss silicon steel laminations assembled under pressure and rigidly locked in the frame.

Features

High operating efficiency resulting lower power consumption
Dynamically balanced rotating parts
Intended for wide voltage fluctuations
Back pull out design for easy maintenance
Single- phase motor is incorporated with imported motor protector

(MOC) Pump

Material of Construction of Pump
Part Name	Material
Pump Casing	Cast Iron
Motor Frame	Cast Iron / Aluminium
Impeller	Cast Iron / Stainless Steel
Shaft	Stainless Steel
Sealing	Mechanical Seal (Carbon & Ceramic)
