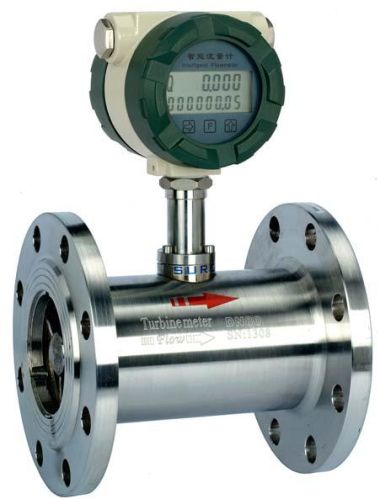

Charun Turbine Flow Meter

We are counted amongst the prominent Manufacturers, Exporters and Suppliers of Turbine Flow Meter in Gujarat, India. Our High accuracy Turbine Flow Meter is suitable for measuring the low flow applications as well as Beverage / Tea / Coffee Vending machines. We can give a customized solution based on various client applications.

The Basic Features are as mentioned below.

• Available in Various Sizes from 6mm (1/4") ~ 50 mm (2")
• Available in Plastic, SS Body
• In Plastic Body, Available in Flow Range from 0.15 ~ 200 LPM
• In SS body, Available from ½” to 6"
• Working Voltage : 4.5 ~ 24 V DC
• Working Pressure 5 ~ 12 bar
• Working Temperature up to 120° C
• Output : Pulse, 4-20 mA, RS485, HART
• Connection : Threaded, Flanged, Tri Clover
• Typical Application : Tea / Coffee / Beverage / Water Vending Machines
• Best Suited for Low Flow Measurements


Details :

• Turbine Flow Sensor TFS06

  • Connection Size 6 mm
  • Flow Range 0.15 LPM ~ 3 LPM

• Turbine Flow Sensor TFS12

  • Connection Size 12 mm
  • Flow Range 0.5 LPM ~ 25 LPM

• Turbine Flow Sensor TFS20

  • Connection Size 20 mm
  • Flow Range 1 LPM ~ 40 LPM

• Turbine Flow Sensor TFS25

  • Connection Size 25 mm
  • Flow Range 1 LPM ~ 60 LPM

• Turbine flow sensor TFS40

  • Connection size 40mm
  • Flow Range : 1 LPM ~ 150 LPM

• Turbine Flow Sensor TFS50

  • Connection Size 50mm
  • Flow Range : 1 LPM ~ 200 LPM
