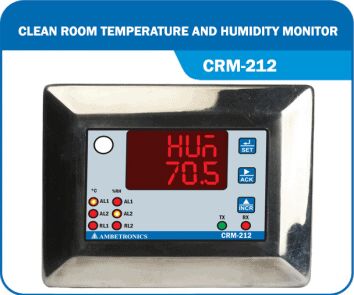

Clean Room Temperature and RH Monitors

Back enclosure76 mm (W) x76 mm (H) x45 mm (D); MS with powder coated
Programmable parameter9600 bps, Parity, Data bits, Stop bits
Status indication2 LEDs for Alarms; Integrated Buzzer for process violation of Alarm limits any of the 2 parameters.
Programmable Parameters-0
Supply TypeManufacturer, Exporter, Supplier, Retailer, Distributor, Trader
Preferred Buyer Location India only

Product Details

Programming of parameters3 Nos. push button front keys (with password protection)
Dimensions; Flush mounting plateSS-304
SensorsIntegrated / Remote Humidity and Temperature Sensor.
HumidityBelow 90% RH, Non condensing.
Set pointProgrammable as per input selection
Supply voltage24VDC ± 10%
Accuracy- Temperature± 0.5% of FS
Output Relay2 No, 2A/24VDC for Temperature/RH; User programmable
MountingModular wall mounting with Stainless Steel Front
Programmable parameter9600 bps, Parity, Data bits, Stop bits
Alarm logicHigh or Low, user programmable
Power consumptionLess than 1.2 watt at 24VDC
Operating Ambient Temp.0 to 50°C
Status indication2 LEDs for Alarms; Integrated Buzzer for process violation of Alarm limits any of the 2 parameters.
No. of salve ID1-250
Display Indication4 digit Seven Segment 0.4” Red LED display for Temp./ RH indication
Back enclosure76 mm (W) x76 mm (H) x45 mm (D); MS with powder coated
Front plate size110 mm (W) x 90 mm (H)
CommunicationIsolated RS-485 communication with Modbus RTU Protocol
Temperature Range-40.0 °C to 100 °C, User programmable; 0.1 Resolution
Accuracy- Humidity± 3 % of FS
Humidity0% to 100 % RH, User programmable; 0.1 Resolution
Programmable Parameters-0
