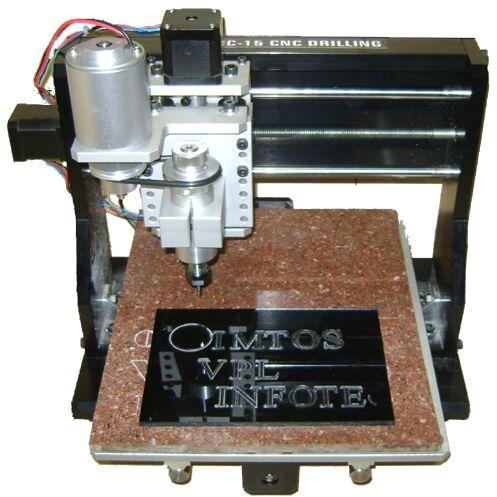

    CNC Micro Milling Machine (VPL-CNC-15M)

    CNC Micro Milling Machine (VPL-CNC-15M)

    Get Latest Price
    • Spindle MotorSpeed
    • Depth overall34″ (864 mm)
    • NutsAnti-Backlash Nuts on all axis
    • Hold torque4.4 kg.cm
    • Supply TypeManufacturer, Exporter, Supplier
    • Preferred Buyer Location All over the world
    View More Details
    Send Enquiry

    Company Information

    VPL Infotech & Consultantsverified-icon
    location Preet Vihar, Delhi
    4.6/5fill iconfill iconfill iconfill iconhalf icon(25)
    View Number
    • calendar Member Since 19 Years
    • building Nature of Business Manufacturer
    • gst icon GST No. 07AACFV6024H1Z9

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    View Company Details

    • Product Details

    • Company Details

    no_img_icon

    • Spindle MotorSpeed
    • Width overall51″ (1295 mm)
    • MaterialConstructed of aluminum alloy (ANODIZING)
    • Table size250mm * 310mm
    • LeadscrewsM10 * Pitch=1.5mm
    • Step angle1.8 degree
    • Rated current/Phase1.68 amps.
    • NutsAnti-Backlash Nuts on all axis
    • Number of Phase2
    • TravelsX-200mm * Y-150mm * Z-60mm
    • Depth overall34″ (864 mm)
    • Voltage/Phase2.77 VDC
    • Height overall58″ (1473 mm)
    • Drill chuck1/4″
    • Hold torque4.4 kg.cm
    • Phase resistance1.65 ohms

    • The system installed in a metallic enclosure with 5′ height, openable front door, acrylic front and side cover and with display panel.
    • It has coolant system with removable collector.
    • It has mechanical storage system on the bottom for Computer system, Controller, UPS and for Electrical wiring.
    • The system supplied with PC with Intel Pentium-IV CPU @ 2.4 GHz, 512MB RAM, 52X DVD Writer, Optical Mouse, 15” TFT  Monitor & Keyboard.
