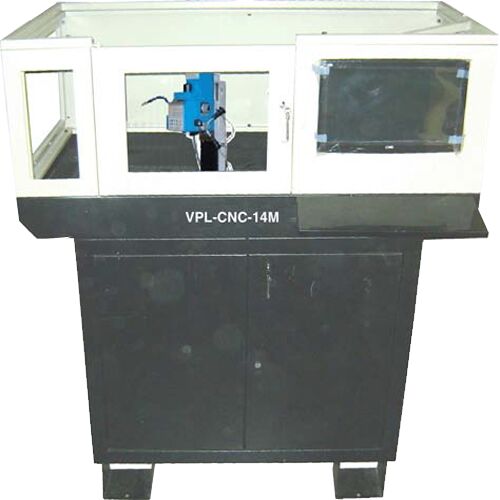

    CNC Milling System (VPL-CNC-14M)

    CNC Milling System (VPL-CNC-14M)

    Get Latest Price
    • Table effective size450 x 160mm
    • Overall Dimensions51″x34″x70″ (1295mm x 864mm x 1778mm) (WxDxH)
    • Motor of X axis4N
    • Spindle taperMT3/R8
    • Supply TypeManufacturer, Exporter, Supplier
    • Preferred Buyer Location All over the world
    View More Details
    Send Enquiry

    Company Information

    VPL Infotech & Consultantsverified-icon
    location Preet Vihar, Delhi
    4.6/5fill iconfill iconfill iconfill iconhalf icon(28)
    View Number
    • calendar Member Since 19 Years
    • building Nature of Business Manufacturer
    • gst icon GST No. 07AACFV6024H1Z9

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    View Company Details

    • Product Details

    • Company Details

    no_img_icon

    • Motor of X axis4N
    • Table travel – Y axis200mm
    • Motor of Z axis6N
    • Table effective size450 x 160mm
    • Max. drill capacity30mm
    • Table T-slot size12mm
    • Shipping weight150 Kg. (Approx.)
    • Overall Dimensions51″x34″x70″ (1295mm x 864mm x 1778mm) (WxDxH)
    • Motor of Y axis4N
    • Spindle motor power1100W
    • Speed of spindle100-5000/100-6000
    • Power requirement110/220AC 50/60Hz
    • Max. spindle motor torque5.5N.M.
    • Drilling capacity25mm
    • No. of T-slots on table3
    • Spindle taperMT3/R8
    • Table travel – Z axis290mm
    • Position accuracy0.01
    • Table travel – X axis300mm

    • It has coolant system with removable collector.
    • The system installed in a metallic enclosure with 6′ height, open able front door, acrylic front and side cover and display panel.
    • It has mechanical storage system on the bottom for Computer system, Controller, UPS and for Electrical  wiring.
    • The system supplied with PC with Intel Pentium-IV CPU @ 2.4 GHz, 512MB RAM, 52X DVD Writer, Optical Mouse, 15” TFT Monitor & Keyboard.
