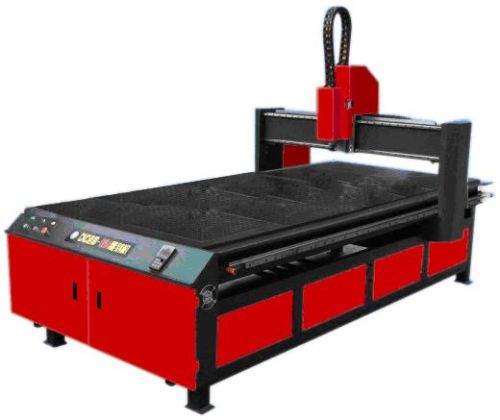

CNC Router--SB1325A

Features:
1. The bed lathe is made of cast steel, analyzed and designed with FEA,relieving stress, so the working table is more stable
2. This machine is with vacuum table, and divided into 4 ares,every area could be controlled separately
3. Two sets of software, one is UCANCAM, the other is ARTCAM, both are English version and suitable for processing 3D design.
4. Two large motors on Y axis, with thicker linear guide rail (size 30)
5. 4.5kw air-cooling spindle, (China and Italy joint venture produce)
6. High speed and efficiency, ax speed without engraving is up to 18000/meanwhile the speed when engraving wave plank can reach 15000mm/min.
Application:
These machines are suitable for engraving and cutting Density board, Door, computer table, furniture and nonmetal material and nonferrous metal, such as copper and aluminum.
Parameter
No. Model SB-1325AN
1 Working area 1300x2500x200mm
2 Size of the lathe 1880*3100*1650mm
3 accuracy ±0.04mm
4 Reposition Accuracy ±0.01mm
6 X、Y、Z guide rail X,Y Rack Gear Z Ball Screw,size30, Z axis size 20,Taiwan linear guide
7 Self consume power of bed lathe 2.5kw
8 Max moving speed 18000mm/min
9 Max engraving speed 15000mm/min
10 Spindle motor 4.5Kw inverter-driven spindle motor air cooled spindle
11 Rotating speed 18000rpm
12 Engraving tools ￠3.175mm/￠6mm
13 Software Type3,Artcam, Ucancam, Caxa, Mastercam, UG
14 Vacuum pump Max pressure 50kpa
Vacuum -38kpa
Max output 380cubic meter per hour
