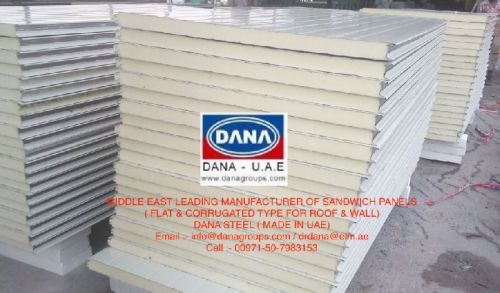

Cold Room Construction Sandwich Panels/ Insulated Panels

Sandwich panels are used majorly in facades , partition wall ceilings, architectural claddings , container constructions, machine coverings, warehouses, power plants and other industrial and commercial places. The panels are also used in cold rooms and food industry construction.
sandwich panels consists of two outer metacapturel sheets (steel , aluminum or other) with stabilizing core of insulation sandwiched between them.the outer surface of the sheet can be flat, corrugated or any specific design.insulating material can be polyurethane, polyi socyanurate, rock wool or eps (expanded polystyrene). These panels are manufactured inside dana factory in u.a.e by injecting polyurethane. Highly sophisticated sandwich panel press and foaming machine are employed to meet any requirements.
Specifications
highlights of dana insulated sandwich panels surface finish types top & bottom sheet material types insulation types
plain pre-painted aluminum polyurethane(pur)
corrugated mill finish aluminum polyisocyanurate(pir)
pre-painted galvanized steel mineral wool rockwool
mill finish galvanized steel expanded polystyrene(eps)
pre painted aluzinc
mill finish aluzinc
specification of top & bottom profile sheet material aluminum grade a3105 h 16 in mill finish or pre-painted
galvanized iron sheets ( gi) astm a653 or other equivalent standards like jis 3302 , en 10326 10327 , is 277 with zinc coating g60 -180gmsm2 or g90 – 275 gmsm2
galvanized iron sheets ( gi) astm a792 with coating az60-az180
combinations of top skin and liner top skin liner
gi mill finish gi mill finish
gi polyester coated gi polyester coated
gi pvdf coated gi pvdf coated
aluminum mill finish aluminum mill finish
aluminum polyester coated aluminum polyester coated
aluminum pvdf coated aluminum pvdf coated
alu-zinc alloy coated steel mill finish alu-zinc alloy coated steel mill finish
