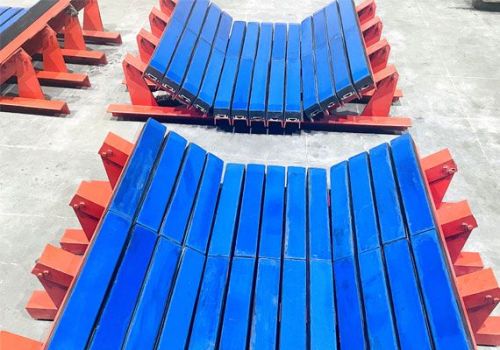

Waidhan group impact pads are designed for loading points of conveyor belts, where a combination of high energy absorption and low friction is needed. Due to ease of installation, these impact pads replace the conveyor rollers, which eventually break or seize and act like a brake. They provide greater belt support area thereby increasing impact absorption and reducing impact on the belt.
The top cover is made of an UHMWPE (ultra high molecular weight polyethylene), which gives these impact pads a very low friction and high we are resistant top surface. The middle portion is of high-quality rubber having high resilience, which acts as a shock absorber at the loading zones of conveyors. These impact pads are manufactured with an aluminium T-type fixing system for easy installation.
Support Frame :
Support frames are designed to suit a wide range of applications for impact pad. These heavy duty/sturdy pads are fixed over an equally robust heavy duty bolted type adjustable support frame to absorb high impact load.
| Belt width (mm) | 600/650 | 750/800 | 1000 | 1200 | 1400 | 1600 | 1800 | 2000 | 2200 | 2400 |
|---|---|---|---|---|---|---|---|---|---|---|
| No. of rows | 6 | 7 | 9 | 10 | 12 | 14 | 15 | 17 | 19 | 20 |
