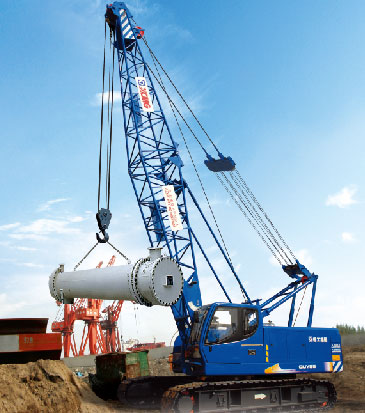

Contact SupplierWe offer crawler crane.
Item unit parameter
max. Rated lifting capacity basic boom t 55
fixed jib t 5
max load moment kn.m 1994
boom length m 13~52
boom luffing angle ° -3~80
fixed jib length m 9.15~15.25
max. Single line speed for hoist mechanism (no load, at 5th layer ) m/min 121
max. Single line speed for boom luffing mechanism(at 1st layer) m/min 52
max. Swing speed r/min 1.5
max. Travel speed km/h 1.35
gradeability % 40
average ground pressure mpa 0.069
engine power kw 125/158
overall weight(main lifting hook,13m boom) t 48.5
max. Single unit weight for transportation t 31
max. Single unit dimensions for transportation(l×w×h) m 11.5×3.47×3.4
