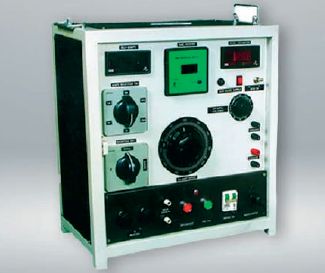

CV-200 Secondary Injection Over Current Relay Test Kit

Company Information

4.4/5

(27)

Ask for more detail from the seller

Report incorrect details

Brand NameSudharsan Insulation
Number Of FlowerSecondary Injection Relay Test Kit
Country of OriginIndia
MaterialMS
Weight59 Kg
ApplicationsSecondary Injection Testing of StaticOver current/ Earth fault relays/ Electromagnet (CDG) relays
AC Injection currentIsolated from Mains (60 Secs. Rating) Continuously adjustable from 0.01 – 200 Amps
Input220 – 240 V, 50Hz, 20 Amps
Dimensions530 x 510 x 570 mm, approx
Auxiliary Ac & Dc supply0- 250 Volts, 0.5 Amps with only Dc Volt meter
Model NumberType SI/CV - 200

Features

Undistorted Sine wave Injection Current.
Performance comparable to Alstom’s CFB Test kit.
Simultaneous availability of AC Injection Current and auxiliary AC / DC outputs.
Digital Panel meters for Volt / Amp / Timer.
Suitable for both NO / NC trip contacts of Relays under test.
Input overload protection with MCB for Current Injection and 0.5A glass fuse for Auxiliary AC/DC outputs.
Powder coated ms enclosure, portable with lifting handles and front panel protectionwith a lockable hinged cover.

Note : As the combined Ac & Dc voltmeter is not available, any one voltmeter ie. Either Ac or Dc voltmeter will be fitted to the test kit.
