digiTWIST i2TM (Electronic Programmable Digital Twist Tester)

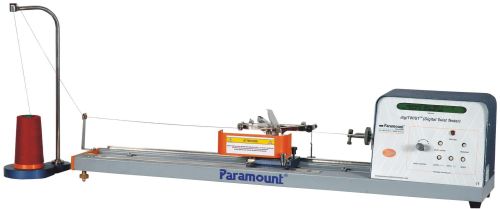

digiTWIST i2TM consists of a fixed base on which the main scale is provided to set the length of the specimen yarn. A panel board is mounted on the right hand side of the base to control and perform all operations of the instrument. On the left hand side of the base, the tensioning device is provided to hold the yarn. This tensioning device is mounted on a moving carriage having stationery yarn gripper Jaw, elongation scale, tension (elongation relief ) stoppers and a tension weight pan. The moving carriage can be adjusted up to 20 inches50 cms to set the length of the specimen yarn. A Carriage knob is provided on the moving carriage to lock it at any required gauge length. The rotating jaw (gripper) is mounted on left hand side of the control unit which is directly coupled with a high procession DC motor. A spring loaded jaw is provided in the rotating jaw to hold the specimen yarn.
