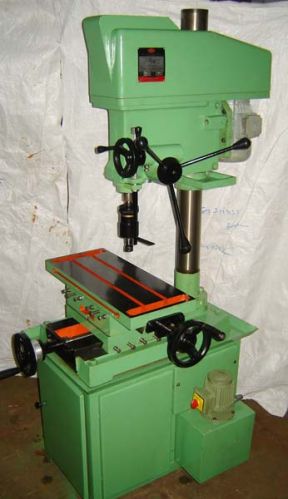

MAAN Drilling Cum Milling Machine

We offer drilling cum milling machine. Cap. 38mm heavy duty drilling cum milling machine with fine feed and without electrical.
Model: maan dcm-40300
specifications in mm
capacity
drilling capacity in m.s. : 38
rough boring in m.s. : 50
tapping in m.s. : 25
end milling in m.s. : 25
drilling head spindle hole taper mt-4
spindle travel 250
no. Of spindle speedrange 880-2600 rpm
diameter of ram 78
auto feed range(mm x rev) fine feed
collet holder mt-4 e 40
working range maxmin dist from nose to table 550155
dist. From spindle center to coloum 305
working table 815 x 250
longitudinal travel 425
cross travel 305
column diameter 110
machine measurement 1300 x 1170 x 1870
power electric motors 2 hp 1440 rpm
v-belt b-60
note: we reserve right to alter or modify dimensions without prior notic.
Optional accessories: (at extra price)
table stand
coolant pump with tank and fitting
machine lamp
drill chuck with key & arbor
drill sleeve
drill vice
special t-bolts
foundation bolt
service tool
wooden box packing & forwarding
