Dual Side Saw Blade Sharpener

Mqf-600b double-edged side angle grinder:
*machine tools of this type grind the two side angle at the same time, avoid the
error caused by the different force, high precision and efficiency. They are suitable for
batch process. Several machine tools can be operated simultaneously by one person.
*the front angle rise and down electrically, saving the time and the labors. The
acute angles and the radial angles of the two sides can adjust separately. Double grind
head’s design is ball slide way entering and rectilinear slide way. Entering is exactly
and symmetrically. We can adjust the pad pressure and the pressure of the single
grinding head to make the saw blade in the center of the mechanism of the pressed
pad.
Hydraulic system consists of the accumulator, the oil pump of setting tooth, and the
oil pump of the grinding head. Above parts have the amortize system. The grinding
head adopts the v slide way to insuring the machine running steadily and in-phase.
And the dimension and precision of the cutting head were protected effectively. The
plc output adopts the band two protection designs and the output point
*the center lubricating system could put on steam automatically or
artificially. The mechanism of setting tooth, the mechanism of pressed
pad and the mechanism of hung pad have out side point to lubricate oil.
Machine tool’s rigidity is good and the life-span is long.

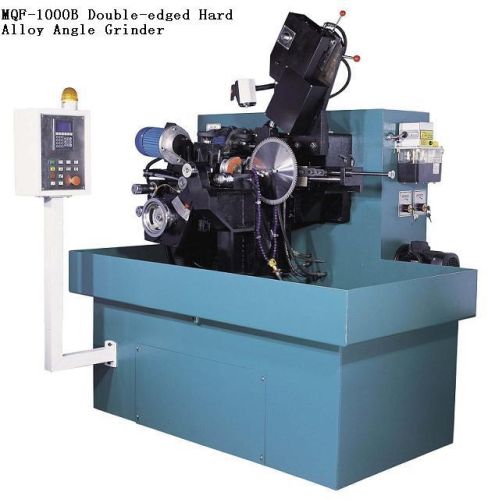

Mqf-1000b double-edged side angle grinder
mqf-1000b the mechanism of setting tooth adopts suspending way, the pitch we can
adjust automatically in the running span to fit the saw blade which has a bigger
diameter and smaller cutting head and the complex tooth form. The speed of the
grinding head’s running track begins to quickly expedite, but when it is
closing to the knife head which automatically turn to slow. And we can
adjust the speed and the location to improve the grinding efficiency.
