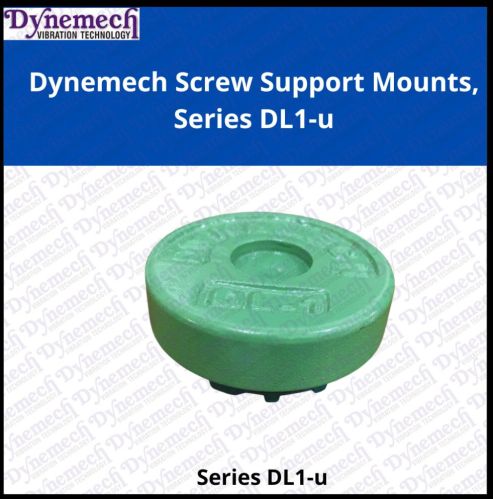

Dynemech Machine Foundation Vibration Elimination Mounts Series DL1-u

Dynemech DL Series AV mounts used for light to medium weight machines suited to levelling screw support or having tapped hole in the base. Dynemech DLS Series AV Mounts, developed in stainless steel finds application in pharmaceutical food and beverages processing and packaing units, medical equipment manufacturing and chemical processing industries.Provide vibration isolation with complete hygienic seal and corrsion resistance.

Size :Dia-55(mm), Height-21(mm)

Load Capacity (Kg.):150 Kg/pc

 Natural Frequency (Hz):18

Coeff. of Friction:0.9

Working Temp Range °C:-16 to 90

Weight ( Kg.):0.3

Material:Rubber+Cust Iron+Mild steel

Colour:Green & Dark Grey

Note- GST and Freight Charges are not included.
