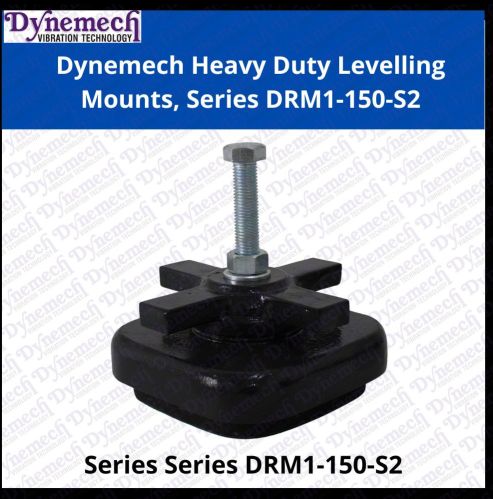

Dynemech Series drm1 150 s2 Level Grip Mounts

Dynemech Level Grip Mounts Series DRM1-150-S2 Mounts levelling is done using a large lever screw. This screw transmits static and dynamic load of the machine on a larger area and thus provides greater stability to the machine. The levelling leaver requires lesser torque for lifting the machine while levelling.

Length:150(mm) To 232(mm)                      Width:150(mm) To 232(mm)                         Height:77(mm) To 77(mm)                                       Bolt Size:M16x2.0x100mm To M20x2.5x100mm

Levelling Adjustment: 20(mm) To 20 (mm)

Load Capacity: 1000 Kg/pc To 3300 Kg/pc

Natural Frequency (Hz):-8Hz To 8Hz

Coeff. of Friction: 0.8 To 0.8

Working Temp Range :16 to 90

Weight ( Kg.): 5 Kgs To 10 KgS

Material: Cast Iron, Rubber

Colour: Green And Black                                                 Price-2600

Note- GST and Freight Charges are not included.
