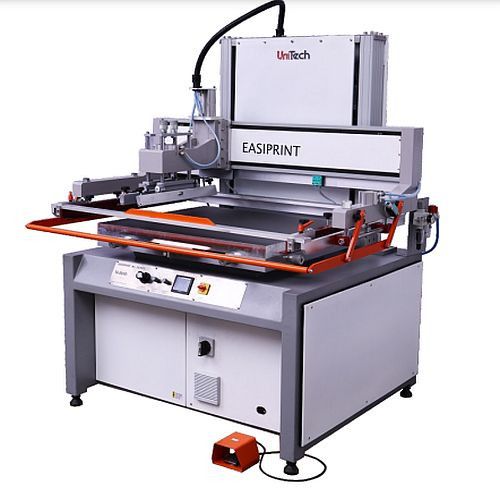

EASIPRINT M2-Series is a vertical lift two post pillar screen printing press. It is a semi auto flat motorized screen printing machine that offers superior print performance with zero registration issues. The machine delivers output of 800 impressions per hour.
EASIPRINT M2 series screen printing machine is suitable for shorter print runs due to its simple & fast loading unloading mechanism of screen Printing frames. The design of the machine ensures :
Safety of the operator
Easy to service
Effortless to operate
Occupies lesser production space
EASIPRINT flat motorized screen printing machine has self diagnostic closed loop system which continuously monitors its critical parts & any fault will be exactly identified on the LED panel to drastically reduce breakdown time.
Construction
Less space required
Screen runs vertically to keep ink on the screen so it does not flow
Easy for squeegee, coater & screen replacement as well as screen cleaning
Vacuum System
Motorized squeegee / Flood pressure adjustment
Heavy-gauge stainless steel vacuum bed top
Bed movement for registration
Motorized Peel off system
Control Panel
Easy to navigate with programming and prompts in plain language
Digital microprocessor with self-diagnostics
Flood /non-flood setting allows screens to be flooded or left un flooded after each print cycle
Hands-free single-cycle printing and for vacuum control of hard-to-feed substrates
Cycle interruption with foot start switch
Multiple print capability
Print Carriage
Adjustable, tool-free front and rear sensors for squeegee stroke length on adjustment
Shock absorber to eliminate the shock from printing movement
Motorized squeegee / flood pressure adjustment
Bed movement for registration
Adjustable peel off height & speed of peel-off
Safety plate and emergency stop push button for safety operation
Warranty and support
One-year warranty on manufacturing defects
Microprocessor self diagnostic system on each machine
| Print Size | mm | 600 x 750 | 600 x 1200 | 610 x 1520 |
|---|---|---|---|---|
| Print Size | inch | 24 x 30 | 24 x 48 | 24 x 60 |
| Sheet Size Max | mm | 680 x 830 | 680 x 1290 | 680 x 1600 |
| Sheet Size Max | inch | 27 x 33 | 27 x 51 | 27 x 63 |
| Frame Size Max | mm | 910 x 1160 | 910 x 1620 | 910 x 1900 |
| Frame Size Max | inch | 36 x 46 | 36 x 64 | 36 x 76 |
| Size of Vacuum Area | mm | 630 x 780 | 630 x 1240 | 630 x 1540 |
| Size of Vacuum Area | inch | 25 x 31 | 25 x 49 | 25 x 61 |
| Max. Substrate Thickness | mm | 50 | 50 | 50 |
| Max. Substrate Thickness | inch | 2 | 2 | 2 |
| Table Fine Adjustment (Y-Y-X) | mm | ±10 | ±10 | ±10 |
| Table Fine Adjustment (Y-Y-X) | inch | 0.3 | 0.3 | 0.3 |
| Squeegee Speed | mm/sec | — | — | — |
| Outer Dimensions (W/L/H) | mm | 1190 x 1300 x 1900 | 1304 x 1880 x 1855 | 1304 x 1880 x 1855 |
| Outer Dimensions (W/L/H) | inch | 47 x 52 x 76 | 50 x 72 x 70 | 50 x 72 x 70 |
| Weight | Kg | 950 | 1050 | 1250 |
| Maximum Speed | Cycle./h | 700 | 700 | 700 |
| Control Panel | — | With Self Diagnostics System | With Self Diagnostics System | With Self Diagnostics System |
| Power Supply | — | 3 Phase | 3 Phase | 3 Phase |
|---|---|---|---|---|
| Circuit Connection | — | 4 Pole MCB 25 Amp. | 4 Pole MCB 25 Amp. | 4 Pole MCB 25 Amp. |
| Working Space Requirement | — | 94 x 104 x 76 | 100 x 140 x 70 | 102 x 180 x 73 |
| Air Consumption | l/min | — | — | — |
| Air Compressor | Hp | 1 Hp, 8 bar | 1 Hp, 8 bar | 1 Hp, 8 bar |
| Turbine Blower | Hp | 1 Hp | 1.5 Hp | 2 Hp |
