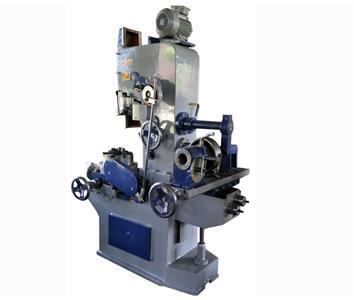

Grey Electric Eccentric Slotting Machine

Driven TypeElectric
ConditionNew
Country of OriginIndia
Designed ForSlotting and cutting of the corrugated board
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

In the slotting machine, work item is placed in a vertical position on the bed. And then cutting tools move in reciprocating action to perform the operation and shed the additional material from the work item. In the slotting machine cutting action is executed at the downward

View More Details

Send Enquiry

Technical Specifications: (in Mm )

SPECIFICATIONS	SIZES	SIZES	SIZES	SIZES
Maximum Length of Stroke	8” Light	10” Heavy	10”	12”
Length of Ram	20”	30”	30”	40”
Width of Ram	6”	8”	8”	9”
Length of Ram Bearing	14”	20”	22”	26”
No. of Speeds to Ram by Gear Box	2	2	4	4
Maximum diameter of work Admitted	20”	32”	36”	48”
Maximum Height of work Admitted	7”	9”	11”	15”
Longitudinal traverse of table	9”	15”	18”	24”
Transverse traverse of table	10”	12”	15”	18”
Diameter of Circular table	12”	15”	18”	24”
Horse Power required	1 H.P.	2 H.P.	3 H.P.	5 H.P.
Approx. Weight of Casting	13 Qnt.	15 Qnt.	25 Qnt.	30 Qnt.
Dividing arrangements	Yes	Yes	Yes	Yes
Slottomill table size	30”x 8”	36”x 8½”	36”x 8½”	48”x 11”
Centre of dividing head	5”	5”	6”	6”
