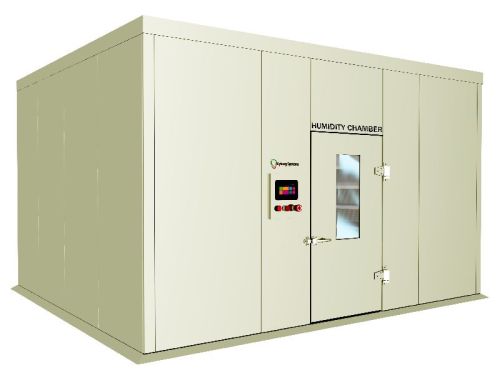

Electric Automatic Walk In Stability Chamber

• Equipment : PLC based Humidity chamber (Walkin type) (Also available in controller based )
• Control system : Allen Bradley PLC controlling temperature and humidity. Also connected to IOT device to access chamber via mobile
• Humidity system : A steam generation tank followed by a reservoir water tank generates steam and make a non-condensing steam injection system to the chamber. A standby humidity system will be provided for continuous function during fault
• Refrigeration system : An eco-friendly refrigerant (R-134) is used in a compressor which satisfies the requirement of CFC free cooling system. Copeland (Emerson) make compressor will be hermetically sealed and coupled with evaporation coil& condenser. A standby refrigeration system will be provided for continuous function during fault
• Air circulation : To get an uniform temperature & humidity a centrifugal blower connected to a motor will blow the steam & air from up to down, controlled by PLC
• Heating system : SS. U shaped nichrome wire
• Insulation : 80 mm sheet of PUF (Poly Urethane Foam)
• Trays : Stainless steel perforated or wire mesh as per the requirement. Trays will be adjustable as per sample size
• Illumination : LED light is provided for bright illumination and low power consumption
• Fault Indications : Audio visual indication is provided for all types of fault occur in the chamber
• Validation port : A 60 mm port hole sealed with silicon rubber is provided on the side wall of chamber for validation purpose
• Sensors : Hygroflex sensor to sense both temperature and humidity
• software : CDAQ complying 21 CFR part 11

Optional features

• To avoid critical conditions and for ease of operation
• Hooter
• GSM technology
• Extra trays
• Extra sensor

Certification : ISO 9001:2015

Wireless access : A direct access to chamber is possible via mobile using IOT device
