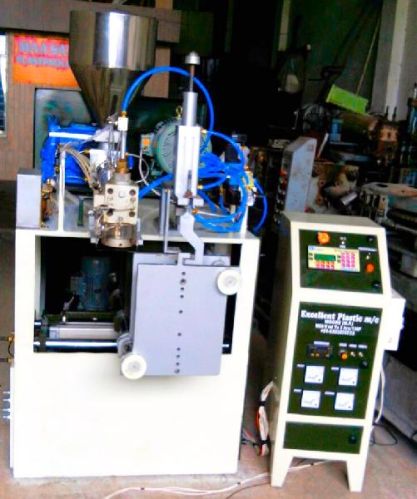

250 Ml To 1000 Ml. HDPE Blow Moulding Machine

Manually fully automatic minimum 250 ml. To maximum 1000 ml. Continues parrsion hdpe pp bottle making blow molding machine, pneumatic with hydraulic operated single station single tube blow molding machine complete 4 x 20 lcd graphic microprocessor panel with vfd ( variable friquancy drive) for prison tube length controlling which is operated by 7.5 hp. A. C. Induction motor and openclose by hydraulic power pack which operated by 2 hp. A.c. Induction motor.
Specification
screw diameter mm 50
blow capacity ml 250 ml to 1000 ml
die station no single
mold width mm 235
mold length mm 310
max. M .thick mm 228
max. M. Opening mm 250
max. Container dia. mm 130
open close by hydraulic
in out by pneumatic
heating zone no 4+1
heating load hp 6.5 hp
screw drive motor hp 7.5 hp
screw motor speed vfd
hy. Drive motor hp 2 hp
total power of mc. hp 16 hp
control panel plc 4x20 mini plc
water header std.
Hopper magnate std.
Hot wire cutter std.
Oil tank capacity ltrs 50 ltrs
mc dimension inch w x d x h
panel dimension inch 14w x 18d x 40h
machine weight kg
machine price rs. 4,70,000.00
