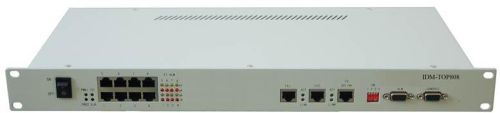

Ethernet To 8e1 Tdm Over IP Converter

We offer idm-top808 achieve end to end circuit simulation(pwe3) , conform to ietf,mfa forum,itu-t standard, can be used with other manufacturers equipment. Support 8 group e1 based tdm business expand to packet-switched networks . Through 10100base-t or 100base-fx link forwarded to the packet network, tdm services can easily be transfered through a packet network(ethernet, ip network, mpls network) , make packet service switch tdm and bulid e1t1 circuit. Achieve user e1 port, the data flow of high-speed data port, data package convertting. tdm over ip idm-top808 communication processing is base on hardware, providing high performance. It is transparent for through e1t1, so it is easy to configure and maintain.
features
1. 8e1 tdm business switch packet switching network
2. Support e1 loopback: e1 local loopback and e1 remote loopback.
3. support qos management, configurate equipment through local manager or remote manager.
4. Clock precision is 16ppb, effectively guarantee the data returned.
5. Clock mode: internal clocking, user clocking, back the clock, recovered clock etc.
6. Data transmission delay is small, the signal jitter, drift, to ensure the quality of tdm services
7. With a complete led alarm function, user locate faults
8. ip network with excellent transmission performance
9. Configurable packet buffer space, making the e1 end-end delay within 1ms
10. Flexible bandwidth configuration, according to the number of e1 or ip network transmission bandwidth adjust the number of e1 interface.
11. Configurable data packet size and the psn throughput, delay equilibrium, transmission performance in layer 2 ethernet
12. Asic-based architecture provides a stable, high-performance, low processing delay circuit simulation solutions.
