Fingerprint Time Attendance System, Access Control System

We are offering fingerprint time attendance system, access control system.

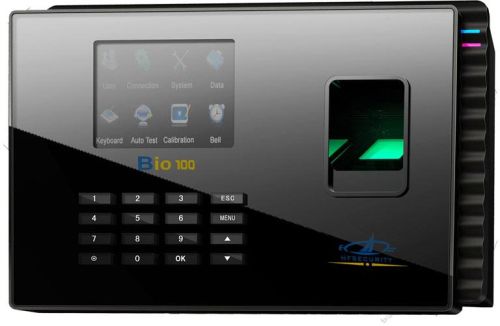

Bio100 is an innovative biometric fingerprint reader for time attendance with access control applications, precision and excellent matching speed. The 3 inch tft can display more information vividly, including fingerprint image quality and verification result etc. Tcp/ip communication is standard and make sure the data transmission between terminal and pc can be easily done within several seconds.
features:
• color tft screen with gui interface for ease of use.
• optical sensor.
• 1 touch a-second user recognition.
• stores 3,000 templates and 80,000 transactions.
• reads fingerprint , id card and pins.
• optional integrated mf card reader.
•access control
• multi language support
connection diagram:
specifications:
fingerprint capacity 3000 templates
transaction capacity 80,000
sensor optical sensor
communication rs485, tcp/ip,usb-host
standard functions id card function , scheduled-bell, self-service query
access control interface for 3rd party electric lock
wiegand signal output
optional functions mifare, standby for 3-6 hours.
Display 3 inches tft screen
power supply 12v dc 5a
operating temperature 0 ℃- 45 ℃
operating humidity 20%-60%.
