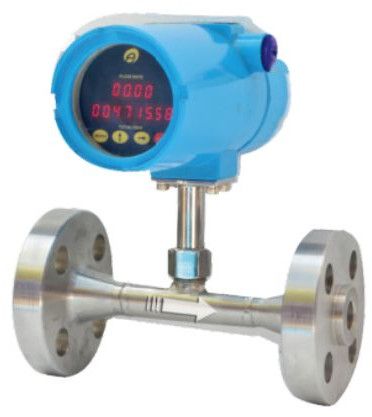

Electronet FL-204 – Four-Wire Turbine Flow TransmitterOverview

The Electronet FL-204 is a robust four-wire turbine flow transmitter designed for precise flow measurement in a wide range of industrial applications. Its simple, cost-effective construction and high-performance magnetic sensing technology make it ideal for both conductive and non-conductive liquids. With an LED display, flexible output options, and IP-67 / Flameproof protection, the FL-204 ensures reliable operation even in harsh environments.

• 4-wire system for stable and accurate signal transmission

• Simple and cost-effective construction

• Suitable for conductive and non-conductive liquids

• Bright LED display for flow rate (4 digits) and totalized flow (8 digits)

• Batch / High / Low relay output options

• Integral or remote electronics configuration

• Low maintenance with durable construction

• Weatherproof IP-67 & Flameproof (CMRI IIA IIB) certified electronics

The flowing liquid rotates a vaned rotor inside the pipe. A magnetic pickup coil senses the rotor's angular velocity and converts it into a pulsating electrical signal.

• The signal frequency is directly proportional to the flow rate.

• The transmitter converts this into a linear 4–20 mA output for process control.

• Total flow is obtained by summing the pulse signals.

• Media: Liquids

• Line Size: 15 NB to 200 NB

• Electronics: Integral or Remote

• Viscosity: Up to 100 cP

• Display: LED – 4-digit flow rate & 8-digit totalizer

• Pick-off Type: Magnetic sensor

• Remote Cable Length: Up to 15 meters

• Outputs:

  1. 4–20 mA DC

  2. Pulse (Open Collector)

• Calibration Range: Factory calibrated as per requirement

• Accuracy: ±0.5% of F.S. + 5 mm/sec (velocity 0.3–6/12 m/s)

• Linearity: ±0.5% of F.S.

• Repeatability: ±0.5% of F.S.

• Temperature Coefficient: ±0.01% / °C

• Pressure Drop: Approx. 0.28 kg/cm² at maximum flow

• Turndown Ratio: 10:1

• Process Temperature: –20 to 120°C

• Process Pressure: 0 to 10 kg/cm²

• Bearings: Tungsten Carbide Sleeve / V-Jewel

• Rotor: SS 410 / 17.4 PH

• Shaft: Tungsten Carbide

• Body / Support / Flange: Stainless Steel

• Power Supply: 24 V DC (±10%)

• Power Consumption: <1 VA

• Electrical Connections:

  • M20 x 1.5F

  • 1/2" NPT-F

  • Pluggable Connector

• Response Time: <100 ms

• Protection: IP-67 Weatherproof & Flameproof (CMRI IIA IIB Certified)

• Process Connections:

  1. ASA 150 RF Flanged (15–200 NB)

  2. Threaded (15–50 NB)

  3. SS Tri-Clover (15–100 NB)

  4. SMS Union (25–100 NB)

• Mounting: In-line (Horizontal or Vertical)

• Ambient Conditions: –20 to 120°C; 5–95% RH (non-condensing)

• Relay Outputs: 1 or 2 relays (max 2 alarms)

• Certification: CE
