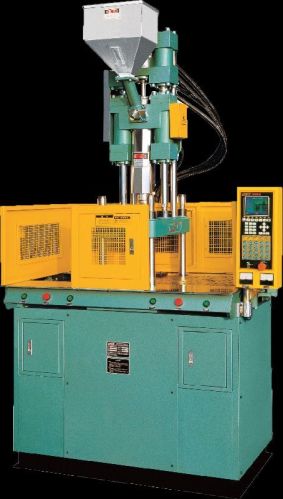

FOMTEC Brand Vertical Injection Molding Machine FOR Lamitube Header

FT-400TDS(Double Slide Table Machine) LAMITUBE HEADER MAKING MACHINE

- DOUBLE SHUTTLE TABLE TYPE

- Design ready for tube shoulder and screw production

- Completed with AIR blow ejection

- With mold height added rings sets(20mm, 40mm, 60mm)

- Required ONE upper mold half and ONE or TWO bottom mold halves

Screw Diameter : Ф32 mm

Injection Pressure : 1531 Kg/cm2

Theoretical shot volume : 97 cm3

Max. shot weight(PS) : 89 g

Injection Rate : 55 cm3/sec

Clamping Force : 40 ton

Top Platen Size : 550 x 390 mm

Space between tie-bars : 410 x 225 mm

Slide Table Size : 390 x 820 mm

Min mold thickness : 300/+20/+40/+60 mm(Selectable Height Added Rings)

Opening stroke : 200 mm

Max. open daylight : 500 or 520 or 540 mm

Ejector Stroke 35 mm

Ejector Force 1.3 ton

Power : 380/3/50

Total Wattage : 9.1 kw

Machine weight : approx.2.4 ton

Machine Dimension : 1.8 x 1.5 x 2.5 m

Machine Package Size 2.4 x 1.22 x 2.02 m
