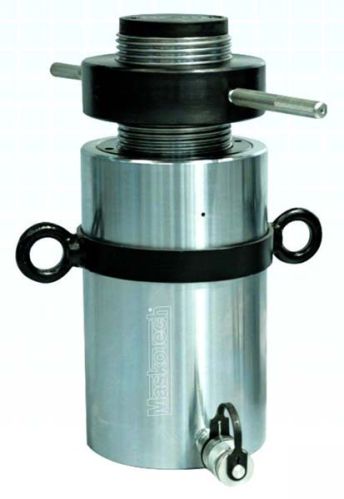

General Purpose Jacks Threaded RAM With Safety Lock Nut

Supply TypeManufacturer, Supplier
Preferred Buyer Location All over the world

Based in Gujarat, we are enlisted amid the premier Manufacturers and Suppliers of the General Purpose Jacks Threaded Ram with Safety Lock Nut in the country. We fabricate them from quality materials,....

View More Details

Send Enquiry

Company Information

Masko Tech Engineers

Bhaktinagar, Rajkot, Gujarat

View Number

Member Since 12 Years
Nature of Business Manufacturer
Year of Establishment 1968

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Based in Gujarat, we are enlisted amid the premier Manufacturers and Suppliers of the General Purpose Jacks Threaded Ram with Safety Lock Nut in the country. We fabricate them from quality materials, in compliance with the crucial industry standards. They are strong, durable, and reliable. Offered in standard and bespoke specifications, these are competitively priced by us.

Features / Applications :

Standard multipurpose application jacks
Spring return mechanism upto 500 t capacity, Load return for 600 t and above
Speherical saddle for 500 t and above; optional for lower capacities
Ideally suited for application requiring sustained load holding in infrastructure projects, heavy industries

Technical Parameters

capacity	stroke	model with Plain saddle	model with spher-ical saddl-e	Effective Area	Oil Cap.	Close-d ht. with Plain saddle	Closed ht. with sph. saddle	cylinder OD	Bore Dia.	Ram Dia.	Plain Saddle Dia.	Spherical saddle Dia.	wt. (Approx.) (Plain saddle)	wt. (Approx.) (Sph. saddle)
Ton (kN)	(mm)	MT	MT	cm.sq.	(cc)	A(mm)	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	E(mm)	(KG)	(KG)
10(111)	150	-	-	15.9	239	245	255	60	45	40	34	35	4.5	4.7
15(167)	150	-	-	23.8	356	250	265	70	55	50	43	43	6.5	6.7
20(218)	150	-	-	31.2	468	260	275	80	63	55	48	48	9	9.3
25(270)	150	-	-	38.5	577	270	285	90	70	55	50	48	11.3	11.7
30(309)	150	-	-	44.2	663	275	290	100	75	600	55	55	14.5	27
50(550)	150	-	-	78.5	1178	290	305	130	100	80	75	74	26.5	27
75(792)	150	-	-	113.1	1696	305	320	155	120	95	89	88	37	38
100(1077)	150	-		153.9	2309	320	325	180	140	110	103	100	56	57
150(1589)	150	-	-	227	3405	325	350	220	170	140	133	130	86	88.5
200(2199)	150	-		314.2	4712	340	365	255	200	160	152	150	110	114
250(2661)	150	-	-	380.1	5702	350	38	280	220	180	170	165	134	139
300(3167)	150	-	-	452.4	6786	370	405	310	240	200	192	180	176	183.5
400(4008)	150	-	-	572.6	8588	405	445	350	270	220	212	212	240	252
500(4948)	150	-	-	706.9	10603	NA	465	400	300	250	NA	230	NA	363

Details

Capacity	stroke	Model	Effective Area	Oil cap.	Closed Ht.	Cylinder OD	Bore Dia.	Ram Dia.	Saddle Dia	Wt. (Approx)
Tons (kN)	(mm)	MT	cm.sq.	(cc)	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	(kg)
600(5987)	150	GLTS 600-150	855.3	12829	495	430	330	275	260	495
800(7939)	150	GLTS 800-150	1134.1	17012	535	505	380	310	290	731
1000(9930)	150	GLTS 1000-150	1418.6	21279	570	560	425	350	330	970
1500(15154)	150	GLTS 1500-150	2164.8	32472	660	705	525	450	400	1822
2000(20458)	150	GLTS 2000-150	2922.5	43837	750	810	610	525	495	2688
