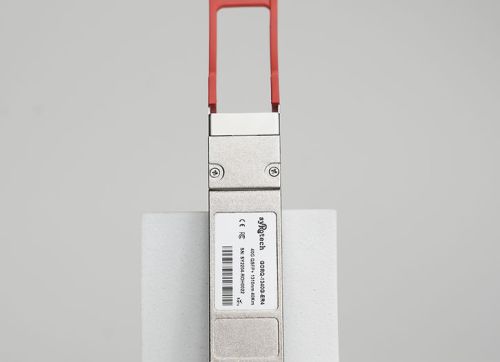

Automatic Electric Syrotech GORQ-1340G-ER4 SFP Optical Transceiver

features -

• gorq-1340g-er4 transceiver module: designed for 40km optical communication applications, delivering high-performance, long-range data transmission.
• compliance with ieee p802.3ba standard: fully compliant with the 40gbase-lr4 standard, ensuring compatibility with industry protocols for long-range optical communication.
• electrical to optical conversion: converts 4 input channels of 10gb/s electrical data into 4 cwdm (coarse wavelength division multiplexing) optical signals, multiplexing them into a single 40gb/s optical transmission channel.
• optical to electrical conversion: on the receiver side, the module de-multiplexes the 40gb/s optical input into 4 cwdm channels and converts them back to 4 output channels of electrical data.
• lan wdm channel wavelengths: utilizes 4 central wavelengths—1271 nm, 1291 nm, 1311 nm, and 1331 nm—aligned with the cwdm wavelength grid defined in itu-t g694.2.
• duplex lc connector: features a duplex lc connector for seamless integration with single-mode fiber.
• 38-pin electrical interface: equipped with a 38-pin electrical interface for easy integration with compatible systems and equipment.
• long-range transmission: capable of supporting 40km transmission over single-mode fiber, making it ideal for high-capacity, long-distance communication applications.
