    Grooming Mower

    • Supply TypeManufacturer, Exporter, Supplier, Retailer
    • Preferred Buyer Location All over the world

    The SGM-series grooming mowers are specifically designed for lawn and grass professional mowing and maintenance of areas like private lawns, parks, airports, hospital grounds, schools, highways, golf....
    View More Details
    Send Enquiry

    Company Information

    • calendar Member Since 10 Years
    • building Nature of Business Retailer
    • gst icon GST No. 24AABCT6282F1ZE

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    • Product Details

    • Company Details

    no_img_icon

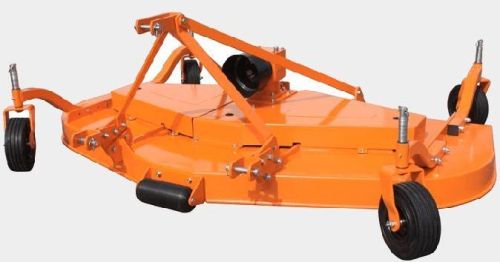

    The SGM-series grooming mowers are specifically designed for lawn and grass professional mowing and maintenance of areas like private lawns, parks, airports, hospital grounds, schools, highways, golf courses etc.



                 Advantages



    • The SGM mowers can be either tractor front or rear mounted on universal three point hitch . The power is transmitted by means of two belts from a pulley coupled to the multiplier gearbox shaft to three pulleys coupled to individual spindle shafts. Each shaft is equipped with a suction type blade turning at a high tip speed for best results in mowing.
    • The mowers are provided with 4 swivel wheels that allow to follow the contour of the ground, giving a precise and level cut even in undulating conditions.




    MODELSGM 48SGM 60SGM 72SGM 84
    Overall Length (mm)1360163019202250
    Overall Width (mm)1340147015201730
    Overall Height (mm)750750750750
    Cutting Width (mm / inch)1220 / 481520 / 601800 / 722130 / 84
    Tractor Power (HP)20-50
    3-Point Hitch TypeCAT-I (ISO 730 Standard)
    PTO Input Speed540
    Cutting Height (mm / inch)19-110 / 3/4-4 1/3
    PTO Drive ShaftASAE Cat.3
    Deck Thickness (mm)4.5
    Wheels Type (inch)Air 11 x 4-5
    Solid Tyre 10 x 3.25 / Solid Tyre 11 x 3.55
    Plets (Number and Type)2 BX Type2 BX Type2 BX Type2 BX Type
    Boom Span (Number of Divisions)5
    Number of Blades3
    Blade Size (mm)6 x 60 x 4246 x 60 x 5166 x 60 x 6186 x 60 x 728
    Blade Overlap(mm)25
    Blade Shaft Speed (rpm)3.1302.6482.2362.025
    Blade Tip Speed (fpm)13.67714.08414.24415.149
    Spindle TypeWith Greasable Ball Bearing
    Spindle BearingsBearing 6205 / 6206
    Front RollerStandard
    Unit Weight(*)(kg)203226251300
