GSM Sms Alarm, Brand Name : kingpigeon

Advanced Programmable GSM Alarm Panel In The Worldwide!
Arm or Disarm with a FREE call from your mobile phone!
Arm or Disarm with RFID Reader or Buttons!
Ultimate Version with Ultimate Low Cost!

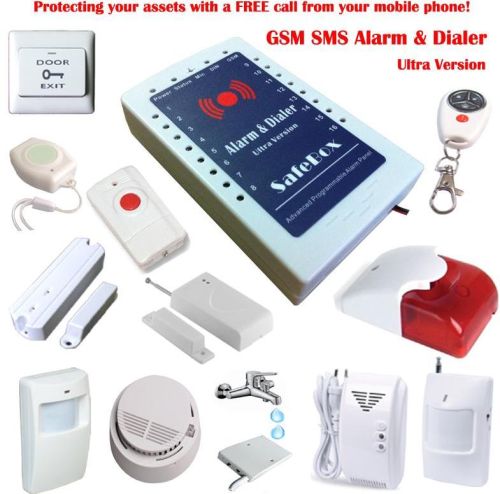

Name: GSM SMS Alarm Ultimate Version
Model: S160
GSM SMS Alarm S160 is an Ultimate Version of GSM Alarm, includes multi-functions and ultimate cost and high reliability special for Residential areas, business area, commercial area, office, factory, industrial area and other Varity applications. It integrated high performance GSM Module and MCU inside, and with innovative and experienced functions and features to meet the required and potential demands in the worldwide markets.
The user can receive SMS Text and incoming from the S160 once the alarm occurrence. Also, the user can remotely armed or disarmed and switch on or off the siren by SMS Commands, or remotely armed or disarmed with free call from mobile phone, or remotely can call in the S160 to listen in on-site.
Moreover, the S160 supports Android Apps and iOS, though the Android and iOS Apps, the user can quickly to Arm, Disarm, Inquiry Status and Switch ON or OFF Siren, armed or disarmed with free call, no need to program the SMS commands every time.
Functions & Features of the GSM SMS Alarm S160:
1.GSM Frequency: 900/1800Mhz or 950/1900Mhz;
2.Supports Away Armed, Partial Armed(At House or Stay) or Disarmed by Remote Control, Wireless Buttons, Wired Buttons, SMS Commands, Call in with free charge, Android Apps and iOS apps;
3.Supports Android Apps and iPhone iOS apps, quickly to Arm, Disarm, Inquiry Status, Switch ON or OFF Siren, Call in to arm/disarmed , Call in to listen in;
4.Supports 5 User Numbers, each number can be setup as receive SMS or receive call or both of them, also, each number can be setup authorized to call in to listen or call in to arm or disarm the system;
5.Supports listen on-site through internal sensitive microphone and call back;
6.Automatically send SMS Alert Alarm Message and dial to the pre-set numbers when alarm occurrence;
7.Learning code, more safe and easy to add new wireless remote keys and wireless detectors;
8.Supports 16 Wireless Zones, can accept one learning code wireless detector in each zone, and accept unlimited PT2262/2272 fixed code wireless detectors in each zone;
9.Supports 1 wired zones(Dry Contact Type), the input can be Normal Close(NC), Normal Open(NO), special for IP Camera alarm output or other wired sensor connection;
10.Supports verity programmable zone attributes, includes Away(normal), At House or Stay, Entrance Zone, 24 Hours Sound Zone, 24 Hours Silent Zone, Local Zone, SOS Zone, Door Bell Zone;
11.The Zone Name of each zone is programmable by user through SMS Commands;
12.Supports 3 Remote Keys, each Remote Key includes one SOS Panic Button for emergency condition to ask for help;
13.Supports Armed delay to give enough time to leave the home, the delay time is programmable by user;
14.Supports Alarm Delay to give enough time to Disarm it when you come back home, the delay time is programmable by user;
15.Equips one siren output for sounding while alarm occurrence to warning;
16.The external AC power failure & recovery alert function supports 2 optional: Immediately Send SMS to user, after 30 minutes if not recovery then send SMS to user;
17.Standby internal large capacity rechargeable battery which can standby upto 16 hours after AC Power failure, also can provide power to wired siren after AC power failure;
18.Backup battery with low voltage will send SMS to the owner immediately;
19.Supports Password to increase the security of the whole system;
20.Based on the GSM communication network and Operation Menu Display technology, apply to wide range situations.
Standard Package list of the GSM SMS Alarm S160:
Control Unit X1
Regulated 12VDC Power Supply X1
Wireless Door Contact X1
User Manual + Android Apps in CD X1
Optional Accessories:
Combined Light and Siren PIR Motion Sensor Glass Break Sensor
Magnetic Window Sensor Magnetic Steel Scrolling Door Sensor
Infrared Photoelectric Beam Fence Wireless Strobe Siren
Our Other Wireless or wireless Sensors
Specifications of Mainframe of the GSM SMS Alarm S160:
Rated Voltage: 9VDC&1A
Standby current: 20-30mA
Siren Output Voltage: 9VDC
Working temperature: -10��+60�
Storage temperature: -20��+60�
Relative humidity: 10-90%, No condensation
GSM frequency: 900/1800Mhz(Default) or 850/1900MHz(Optional)
Communication protocol: GSM PHASE 2/2+ (include data service)
Wireless Zone: 16 (Accept Max.16Pcs Learning Code Detectors, Unlimited of fixed code Detectors)
Wired Zones: 1, Dry Contact, NC/NO .
Remote key permission quantity: 3Pcs
Effective distance wireless of remote control: 100 m in open air.
Backup Battery: 900mAh Rechargeable lithium battery
Standby time Approx.16 hours (depending on the network condition)
Dimensions: 150mmX92.6mmX30mm (WXDXH);
Net Weight: approx. 0.50Kg
