POSITION DETECTION2 Weather Proof Proximity Limit Sensors
LIFT PISTON VARIATIONS2 Heavy Duty Lifting Pistons
BLOCKING LENGTH3000 mm
OBSTACLE HEIGHT1000 mm (standard)
MANUAL OPERATIONAscending and Descending with Manual Hand Pump
CABINET DIMENSIONSFeature: Standard With HPU2400 Kit With EOK Kit HPU2400 + EOK Kit Width: 390 mm 510 mm 510 mm 700 mm Length: 750 mm 960 mm 1160 mm 1300 mm Height: 1152 mm 1170 mm 1520 mm 1200 mm
AXLE LOAD RESISTANCE35 Tons
HYDRAULIC PIPES18/1.5 Connector - 1/2 Radius, 350 Bars Max Pressure,10 m Pipe Length (standard)

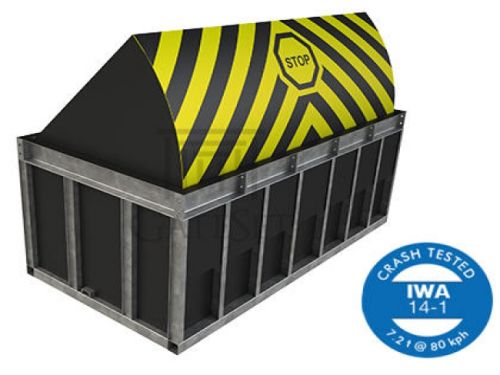

IMPACT RESISTANCE7,500 kg at 80 km/h (K12 - PAS68 Equivalent)
EMERGENCY OPERATIONRising in 1.5 Second (with optional EOK Kit)
PROTECTION CLASSIP 65
CASE DIMENSIONS3200 x 1600 x 1320 mm (for GSR3100-X)
SPEED CONTROLSlowing Down at Opening and Closing Limit Points
BLOCKER UNDERGROUND CASEHeavy Gauge 200 mm NPU Steel Profile Top Frame, Supported by vertical 100 mm NPI Steel Profiles placed all along the perimeter of the case within intervals less than 500 mm
DRIVEHeavy Duty Hydraulic
RISING / FALLING TIME2-3 Seconds(Adjustable)
WORKING FREQUENCY300+ Cycles/Hour
TREATMENTTwo Component Surface Tolerant Epoxy Mastic Coating for Corrosion Protection (Jotamastic) and Painted with Polyester Outdoor Paint, Black Finishing with Yellow Stripes on the Circular Front Steel and Top Plate
CONTROL PANELSchneider SR2 A201BD PLC, Programmable for Integration with Various Systems
TEST PANELIntegrated Test Panel on Electric Cabin Cover with Phase Indicators
CONTROL CABINET2 mm Thick Steel, Electrostatic Thermal Painting for Anti-Corrosion Resistance
STANDARD ACCESSORIESRemote Control Keyboard (wired), Test Unit on ECU Panel, Oil Level and Temperature Indicator, Manometer
DRIVE POWERMin 10 Bars / Max 120 Bars
SAFETY EQUIPMENTEmergency Stop Button (standard), Front and Rear Loop Sensor (optional)
CERTIFICATIONSISO 9001:2008, CE
BLOCKING WEDGEHeavy Gauge 160 mm NPU Steel, Supported by Vertical and Diagonal 100 mm NPI Steel Profiles. Steel Top Plate Thickness is 12 mm. 6 sets of 3-up hinge bars, constructed from 40x100 mm and 20x120 mm Steel Plates
POWER OUTAGECapable to make up to 10 Complete Cycles without Electricity (with optional HPU2400 Kit)
