PVC Insulated H05VV F Type Cable, Brand Name : Johnson

MOQ5000 Meter
MaterialPVC Insulated,PVC Sheathed
Brand NameJohnson
Packaging Type100 Meter,200 Meter,500 Meter,1000 Meter,2000 Meter,Customer Requirement
ColorBlack, Green, White, Yellow, Blue,Brown,Strip,Gray,Gray
Supply TypeManufacturer, Exporter, Supplier, Importer
Preferred Buyer Location All over the world

Company Information

Ask for more detail from the seller

Report incorrect details

FeatureHarmonized Design,Heat Resistance,Insulation Resistance,Moisture Resistance,Abrasion Resistance,Oil Resistance,Mechanical & Electrical Properties,Current Carrying Capacity,Thermal Properties
ApplicationDomestic Appliances,Kitchens,Offices,Light Portable Appliances,Office Equipment
Packaging Type100 Meter,200 Meter,500 Meter,1000 Meter,2000 Meter,Customer Requirement
ColorBlack, Green, White, Yellow, Blue,Brown,Strip,Gray,Gray
MaterialPVC Insulated,PVC Sheathed
Voltage300/500V
Country of OriginIndia
Brand NameJohnson
Tensile Strength Min. (N/mm²)12.50 N/mm2

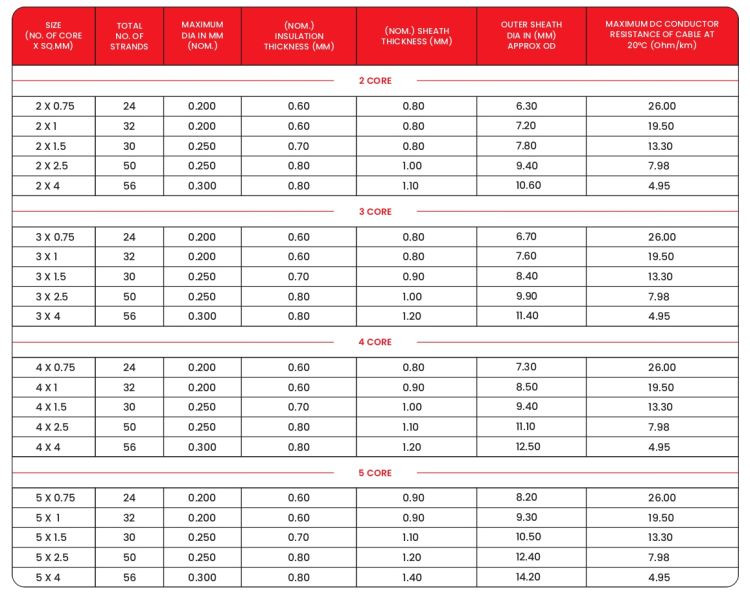

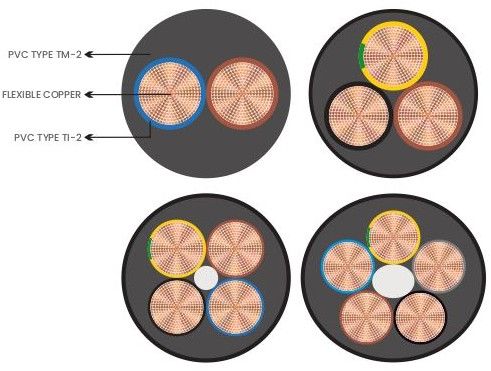

Cable ConstructionConductor: Class 5 Flexible Bare Copper IEC 60228, Insulation: PVC Type TI 2 To EN 50363-3 (H05VV-F), Sheath: PVC Type TM 2 To EN 50363-4-1 (H05VV-F)
Flame Propagation: Flame Retardant TestAs per IEC 60332-1
Operating Temperature Range15°C to +70°C
Test Voltage2000 V
Insulation Color Code2 Core: Blue Brown, 3 Core: Yellow/Green Strip Blue Brown, 4 Core: Yellow/Green Strip Brown Black Gray, 5 Core: Yellow/Green Strip Blue Brown Black Gray, Customer Requirement
Packing Details100 Meter, 200 Meter, 500 Meter, 1000 Meter, 2000 Meter, Customer Requirement
Volume Resistivity at 27°C Min.x 10 Ω-cm
Elongation at Break Min. (%) :150
Sheath Color Code2 Core: White/Blue/Gray, 3 Core: White/Blue/Gray, 4 Core: White/Blue/Gray, 5 Core: White/Blue/Gray, Customer Requirement
Minimum Bending Radius≥8 X Cable Dia
