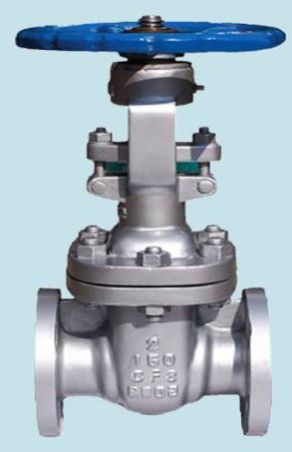

CF8 Heavy Duty Industrial Gate Valve, Brand Name : Fluiremax

Get Latest Price

MOQ50 Piece
MaterialCF8,CF8M,WCB,A105,AISI 304,AISI 316
Brand NameFLUIREMAX
ConditionNew
SizeVarious Size
Supply TypeManufacturer, Exporter, Trader
Preferred Buyer Location All Countries Except India

View More Details

Send Enquiry

Company Information

Rudra Trading & Exports Company

Mirzapur, Uttar Pradesh

View Number

Member Since 5 Years
Nature of Business Manufacturer
GST No. 09AZEPR8376F1ZS

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Brand NameFLUIREMAX
ConditionNew
Country of OriginIndia
Number Of FlowerGate Valve
SizeVarious Size
MaterialCF8,CF8M,WCB,A105,AISI 304,AISI 316
End ConnectionButt Weld, Screwed, Flanged (RF/FF)
Pressure Rating150 To 1500 PSI
OperationManual, Pneumatic, Electric Actuated

Key Features & Benefits

Quality & Innovation: Our valves are manufactured using high-grade materials with rigorous quality checks ensuring long service life and impeccable performance.
Tailored Solutions: FLUIREMAX valves meet industry-specific requirements for water treatment, oil/gas, marine, petrochemical, and more.
Standard Compliance: All products are API, ANSI, DIN, and ISO approved to offer safe and reliable operation across various industrial applications.
(Visual: Infographic summarizing these benefits, integrating our brand colors and logo.)
Application & Industry Certifications

Certifications:

ANSI, API, DIN, JIS, IBR, CE, and ISO Approved
Industries Served:
Water Treatment
Oil & Gas
Petrochemical
Food & Beverage
Power Plants
Marine & Chemical Industries

Gate Valves

Type: Bolted Bonnet / Rising Stem / Non-Rising Stem
Size: 1/2” to 24”
Pressure Rating: 150# to 1500#
Material: CF8, CF8M, WCB, A105, AISI 304, AISI 316
End Connection: Flanged (RF/FF), Screwed, Butt Weld
Operation: Manual, Pneumatic, Electric Actuated

Gate Valve Specifications And Price List

		Gate Valve specifications and Price list
Size	MOC	Body Material	Trim Material	Seat Material	Class	End Connection	Design / Operation / Extras	Fluiremax Price in USD
DN 15	A105	ASTM A105	AISI 410	AISI 410	800#	Screwed/Threaded (NPT)	IBR approved	26
DN 15	CF8	ASTM A182 Gr F304	AISI 304	AISI 304	800#	Screwed/Threaded (NPT)	—	56
DN 15	CF8M	ASTM A182M F316, CF8M	ASTM A182M F316 (heat-treated & hardened)	ASTM A182M F316	800#	Screwed (NPT Female)	Outside Screw & Yoke; Handwheel operated	185
DN 15	WCB	ASTM A216M Gr WCB	AISI 410	AISI 410	150#	Flanged (per ASME B16.5)	Manual operated	62
DN 20	WCB	ASTM A216M Gr WCB	AISI 410	AISI 410	150#	Flanged (per ASME B16.5)	Manual operated	103
DN 25	WCB	ASTM A216M Gr WCB	AISI 410	AISI 410	150#	Flanged [RF]	OS&Y; handwheel operated	82
DN 25	CF8	AISI 304 (CF8)	AISI 304	AISI 304	150#	Flanged (per ASME B16.5)	Manual operated	135
DN 40	WCB	ASTM A216 Gr WCB	AISI 410	AISI 410	150#	Flanged [RF]	IBR approved; OS&Y; handwheel	91
DN 40	CF8	AISI 304 (CF8)	AISI 304	AISI 304	150#	Flanged (per ASME B16.5)	Manual operated	247
DN 50	CF8	AISI 304 (CF8)	AISI 304	AISI 304	150#	Flanged (per ASME B16.5)	Manual operated	397
DN 50	WCB	ASTM A216 Gr WCB	AISI 410	AISI 410	150#	Flanged (per ASME B16.5)	IBR approved; OS&Y	165
DN 50	CF8M	SS 316	“Trim-12” (per datasheet)	(per datasheet)	600#	Flanged end	Refer datasheet GA06ST500	1024
DN 65	WCB	ASTM A216M Gr WCB	AISI 410	AISI 410	150#	Flanged (per ASME B16.5)	Handwheel; IBR approved	200
DN 65	CF8	AISI 304 (CF8)	AISI 304	AISI 304	150#	Flanged (per ASME B16.5)	Manual operated	551
DN 65	WCB	ASTM A216M Gr WCB	13% Cr (HT, hardened)	ASTM A105 + Stellite	150#	Flanged [RF]	OS&Y; handwheel; IBR approved	193
DN 80	WCB	ASTM A216M Gr WCB	13% Cr (HT, hardened)	ASTM A105 + Stellite	150#	Flanged [RF]	OS&Y; handwheel; IBR approved	258
DN 100	CF8	AISI 304 (CF8)	AISI 304	AISI 304	150#	Flanged (per ASME B16.5)	Manual operated	987
DN 100	WCB	ASTM A216 Gr WCB	AISI 410	AISI 410	150#	Flanged (per ASME B16.5)	IBR approved	377
DN 125	WCB	ASTM A216M Gr WCB	AISI 410	AISI 410	150#	Flanged [RF]	Handwheel operated; IBR approved	677
DN 125	CF8	ASTM A351M Gr CF8	AISI 304	AISI 304	150#	Flanged [RF]	OS&Y; handwheel operated	1518
DN 150	CF8	AISI 304 (CF8)	AISI 304	AISI 304	150#	Flanged (per ASME B16.5)	Manual operated	1820
DN 150	WCB	ASTM A216M Gr WCB	13 % Cr, heat-treated & hardened	ASTM A105 + Stellite	150#	Flanged [RF]	OS&Y; handwheel operated	875
DN 200	CF8	AISI 304 (CF8)	AISI 304	AISI 304	150#	Flanged (per ASME B16.5)	Manual operated	3539
DN 200	WCB	ASTM A216M Gr WCB	13% Cr, heat-treated & hardened	ASTM A105 + Stellite	150#	Flanged [RF]	OS&Y; handwheel operated; IBR approved	2052
DN 250	CF8	AISI 304 (CF8)	AISI 304	AISI 304	150#	Flanged (per ASME B16.5)	Manual operated	4795
DN 250	WCB	ASTM A216M Gr WCB	13% Cr, heat-treated & hardened	ASTM A105 + Stellite	150#	Flanged [RF]	OS&Y; handwheel operated; IBR approved	2707
DN 300	CF8	AISI 304 (CF8)	AISI 304	AISI 304	150#	Flanged (per ASME B16.5)	Manual operated	6895
DN 350	CF8	ASTM A351M Gr CF8	AISI 304	AISI 304	150#	Flanged [RF]	Handwheel operated	9355
DN 350	WCB	ASTM A216M Gr WCB	13 % Cr, heat-treated & hardened	ASTM A105 + Stellite	150#	Flanged [RF]	OS&Y; handwheel operated; IBR approved	5119
DN 400	WCB	ASTM A 216 Gr WCB	AISI 410	AISI 410	150#	Flanged [RF]	OS&Y; handwheel operated; IBR approved	5841
DN 400	CF8	ASTM A 351M Gr CF8	AISI 304	AISI 304	150#	Flanged [RF]	Handwheel operated	10944
DN 450	WCB	ASTM A 216 Gr WCB	AISI 410	AISI 410	150#	Flanged (per ANSI B16.5)	Manual operated; IBR approved	7899
DN 450	CF8	ASTM A 351M Gr CF8	AISI 304	AISI 304	150#	Flanged [RF]	Handwheel operated	12827
DN 500	WCB	ASTM A 216 Gr WCB	AISI 410	AISI 410	150#	Flanged (per ANSI B16.5)	IBR approved	9846
DN 600	WCB	ASTM A 216 Gr WCB	AISI 410	AISI 410	150#	Flanged [RF]	OS&Y; handwheel operated	11003
