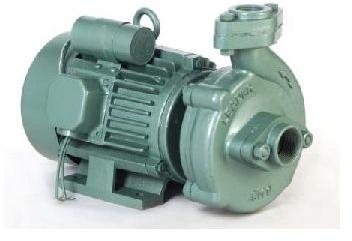

High Head Centrifugal Pump

• LIDER offers a wide range of monoblock pumpsets  with Totally Enclosed Fan Cooled (TEFC) construction IP-44 Protection with Class "B" insulation with Self Priming upto 7.5 meters.
• LIDER monoblock Pumpset is suitable for non corrosive water < 35 °C and < 50 ppm of suspended solids for impressive hydraulic performance and high operating efficiency.
• The Rotor is of pressure die cast-Squirrel Cage and runs on two double shielded pre-lubricated anti-friction sealed ball bearings to withstand radial and axial loads.
• The Pump casing,Adapter,Endshields are made of close grained cast iron of high tensile strength and motor shaft is made of high quality Alloy Steel.
• Impeller is made of forged brass with radial vane design to give trouble free service.
• Stamping is of Electrical Grade Steel Sheet and Winding is done by Super enameled EC Grade Copper Wire vacumm impregnated with synthetic varnish for better moisture resistance.

 APPLICATION

Water supply in domestic/Residential,Apartments,Community water supply,Hotels,Hospitals,Civil and Industrial Applications, Agricultural Applications, Drip & Sprinkler Irrigation,Fountains,Filling water in swimming pools,Fire fighting applications,Draining of tanks and wells etc.

Please raise your query through our email id – liderelectricinfo@gmail.com or  helpline no – 903 903 44 33

 Disclaimer-Ask a plumbing professional to do a professional installation as company replacement policy does not apply to any product that has been damaged because of customer negligence, wrong installation, wrong power supply. As the design and manufacture of pumpsets are subject to constant improvement,the product supplied may differ in some details from the specification given.

 ADVANTAGES

•          TEFC capacitor start and run motor with IP-44 protection.
•          Thermal Overload protector (TOP) prevents motor burning.
•          Withstand wide voltage fluctuation from 180- 240 Volts.
•          Aluminium Extruded / Die cast Motor Body for better heat dissipation and Corrosion resistant.
•          Ceramic Mechanical Seal provided with graphite face for effective sealing against water leakage.
•          Double shielded ball bearings no need of external lubrication.
•          Quality foot valve ensures reliable performance.
•          The terminals are easily accessible.
•          Easy installation,maintenance with easy Servicing and spares availiability.
