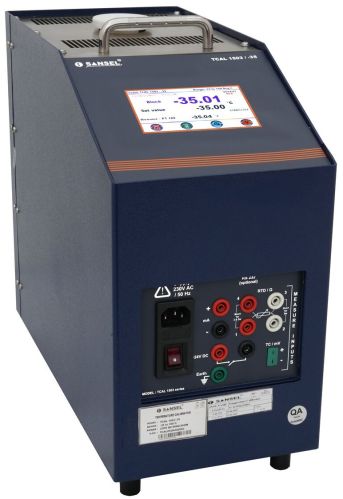

High Precision Sub Zero Dry Block Temperature Calibrator TCAL 1503 / -35

Loading effect: Better than ± 0.08°C

Hysteresis: Better than ± 0.03°C

Heating time: 25 mins (25 to 120 °C)
75 mins (-35 to 120 °C)
52 mins (-35 to 25 °C)

Cooling time: 25 mins (25 to -35 °C)
15 mins (25 to -30 °C)
65 mins (120 to 25 °C)

Stabilization Time : 10 minutes

Test sensor immersion depth: 130 mm

Standard well holes in mm : Insert No. 1 →5.1, 6.2, 6.2 & 8.1, Insert No. 2 →6.2, 6.2 & 10.2

Measure inputs: RTD-PT 100, PT 1000 / TC - J, K, R, S, T, E, B , N , Analog – mA, V, mV, ohms

Cold junction Accuracy: ± 0.3°C

UUC Sensor supply input: 24V DC ± 10% / 50mA max.
