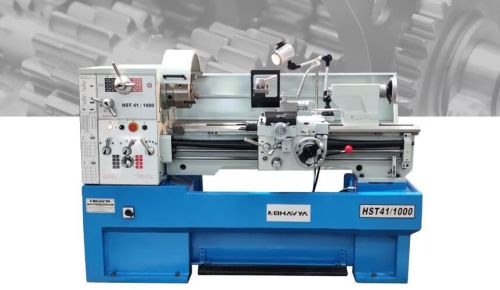

High Speed All Geared Lathe Machine Hst Series

Get Latest Price

MaterialMetal
Country of Origin220V
SeriesHST
Power SourceElectric
Supply TypeManufacturer, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Bhavya Machine Tools

Satellite, Ahmedabad, Gujarat

View Number

Member Since 11 Years
Nature of Business Exporter
Year of Establishment 1979

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Model	HST41	HST46	HST51	HST56	HST66	HST80
Center Height	205mm	230mm	255mm	280mm	330mm	400mm
Swing Over Bed	205mm	460mm	510mm	560mm	660mm	800mm
Swing Over Cross Slide	255mm	270mm	305mm	355mm	440mm	570mm
Swing in Gap	580mm	690mm	735mm	785mm	900mm	1035mm
Length Of Gap	250mm	165mm	270mm	270mm	340mm	340mm
Width Of Bed	250mm	300mm	350mm	350mm	400mm	400mm
Admits Between Centre	1000mm	1000/1500/2000mm	1000/1500/2000/3000mm	1000/1500/2000/3000mm	1500/2000/3000mm	1500/2000/3000mm
Spindle Nose	D1-6	D1-6	D1-8	D1-8	D1-8	D1-8
Spindle Bore	52mm	58mm	80mm	80mm	105mm	105mm
Taper Of Spindle Nose	MT-6	MT-6	MT-6	MT-6	MT-6	MT-6
Spindle Speed	16 / 45-1800 rpm	12 /25-2000 rpm	12 / 25-1600 rpm	12 / 25-1600 rpm	16 / 25-1600 rpm	16 / 25-1600 rpm
Compound Rest Travel	140mm	128mm	130mm	130mm	230mm	230mm
Cross Slide Travel	210mm	285mm	315mm	315mm	365mm	420mm
Lead Screw Thread	4-ΤΡΙ	6mm/4-ΤΡΙ	6mm/4-ΤΡΙ	6mm/4-ΤΡΙ	12mm/2-ΤΡΙ	12mm/2-ΤΡΙ
Tool Shank Size	20x20mm	25x25mm	25x25mm	25x25mm	30x30mm	30x30mm
Longitudinal Feeds	17/0.05-1.7mm/rev	0.031-1.7mm/rev	35/0.059-1.646mm/rev	35/0.059-1.646mm/rev	25/0.044-1.48mm/rev	25/0.044-1.48mm/rev
Cross Feeds	0.025-0.85mm/rev	0.014-0.784mm/rev	35/0.020-0.573mm/rev	35/0.020-0.573mm/rev	25/0.033-0.74mm/rev.	25/0.033-0.74mm/rev.
Metric Thread	42/0.2-14mm	41/0.1-14mm	47/0.1-14mm	47/0.1-14mm	54/0.45-120mm	54/0.45-120mm
Imperial Thread	45/2-72 TPI	60/2-112 TPI	60/2-112 TPI	60/2-112 TPI	54/7/16-80 TPI	54/7/16-80 TPI
Diametrical Thread	21/8-44 DP	50/4-112 DP	50/4-112 DP	50/4-112 DP	42/7/8-160 DP	42/7/8-160 DP
Module Thread	18/0.3-3.5 MP	34/0.1-7 MP	39/0.1-7 MP	39/0.1-7 MP	46/0.25-60 MP	46/0.25-60 MP
Tail Stock Quill Diameter	50mm	60mm	75mm	75mm	85mm	85mm
Tail Stock Quill Travel	120mm	130mm	180mm	180mm	235mm	235mm
Tail Stock Quill Taper	MT-4	MT-4	MT-5	MT-5	MT-5	MT-5
Main Motor Power	2.2/3.3 Kw(3/4.5 HP)3 PH	5.5 Kw	7.5 Kw	7.5 Kw	7.5 Kw	7.5 Kw
Coolant Pump Power	0.1 Kw(1/8 HP) 3PH	0.1 KW	0.1 KW	0.1 KW	0.1 KW	0.1 KW
