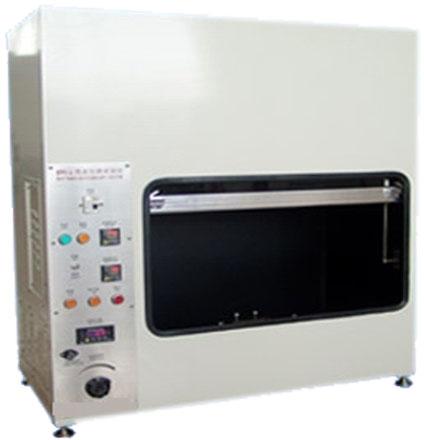

Hot Wire Ignition Tester, Brand Name : Hong Tong

₹ 3.29 Lakh / 3900 3900 Set

MOQ1 Set(s)
Brand NameHong Tong
Electric wireØ 0.5mm, Ni80/Cr20, length: 250 mm ± 5mm, cold resistance: 5.28Ω / m
Test area volume＞0.5³（can be customed 0.75³,1³)
Annealing bracket spacing250mm
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

We offer hot wire ignition tester. Hot wire ignition tester (iec60950-1999, also known as hotline ignition test) conforms to iec60695-2-20-1995, astmd3874-1997, iec60950-1999, ul746a-2000,....

Company Information

Member Since 12 Years
Nature of Business Manufacturer
Year of Establishment 2003

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

We offer hot wire ignition tester. Hot wire ignition tester (iec60950-1999, also known as hotline ignition test) conforms to iec60695-2-20-1995, astmd3874-1997, iec60950-1999, ul746a-2000, ul746c-2000, iec829-1998 and other standards prescribed fire risk simulation test project.
hot wire ignition test uses specific size (0.5 mm length 250 mm) specific material (ni80cr20), electric wire, after pre-annealing required heating power (0.26 wmm) and the specified time (8 s ~ 12 s), winding 5 full circle on the sample according to a certain in winding tension (5.4 n) and winding pitch (6.35 mm), test the wound electric wire sample to 120 s under the provisions of the heating power (0.26 wmm), assessment its fire risk according to the test whether the ignition and ignition time.
