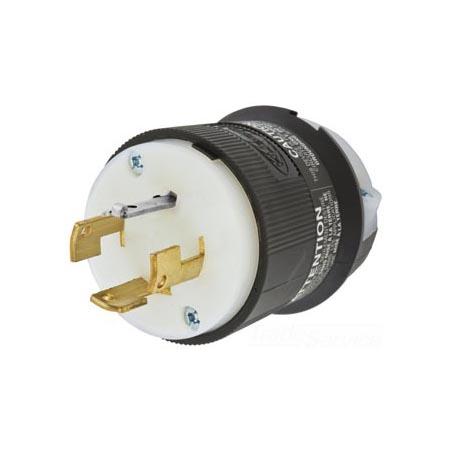

HUBBELL HBL7411C

Hubbell Twist-Lock Plug, 4P4W, 20A 3PH 120208V AC, Non-NEMA, Black and White Nylon
Specs:
Product Item Plug
Wiring Scheme 4-Pole, 4-Wire Non-Grounding
Amperage 20A
Voltage 3 Phase Y 120208V AC
NEMA Configuration Non-NEMA
Item Style Insulgrip
Device Color BlackWhite
Cord Dia. .35"-1.15" (9-29)
Blade Holder Material Natural White Nylon
Terminal Retainer Material Clear polycarbonate
Housing Material Black nylon
Cord Clamp Material Natural (white) nylon
Blade Material Brass
Terminal Clamp Material .08" (2) steel-nickel plated
Terminal Screw Material #10-32 Brass (white finish on neutral screw when used) Multi-drive
Ground Screw Material #10-32 Brass (green finish) Multi-drive
Cord Clamp Screw Material Steel, zinc plated Multi-drive
Body Holding Screw Material Steel, zinc plated Multi-drive
Ratings Molded In or Stamped On
Catalog No Permanently ink marked on product
Dielectric Voltage Withstand 2,000V minimum
Current Interrupting Certified for current interrupting at full rated current
Temperature Rise Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
Cord Accommodation Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.
Terminal Accommodation 20A #12 AWG
Terminal Identification Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Operating Temperatures Maximum Continuous 75 C Minimum -40 C (wo impact)
Moisture Resistance IP20
