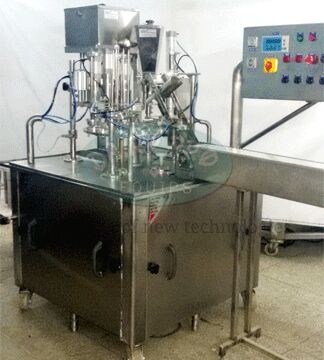

Ice Cream Filling Machine

Taj Ice-Cream Cup & Cone Filling Machine:

Item Code: VCFM-200-PLC

Our filling machine can fill varieties of Ice Creamsuch as plain or with Ingredients or with Ripple using required attachmentsoffered with the machine.

Output:

Minimum 1500 Cups / Cones per Hour of 100 mlsuitable for150 liter / hour freezer
Maximum 3000 Cups / Cones per Hour of 100 mlsuitable for 200 liter / hour freezer
All contact parts are of SS-304 or food gradeMaterial

Model VCFM-200-PLC is fully automatic machine having following operations:

• Dispensing of cups automatic. (Dispensing of cones manually)
• Cone expansion
• Chocolate spray in biscuit cones
• Filling of ice-cream into cups / cones
• Top filling with chocolate or fruit syrup
• Dry nut sprinkling
• Card board lid dispenser
• Closing of cones
• Ejecting of the finished cones or cups

Advantage of PLC:

Important feature of plc is that automatic shiftregister function i.e. no cone no lid, hence we can save raw material &compressed air too

Technical Data:

• Filling quantity: 50 ml minimum and up to 200 ml
• Speed variation: ac frequency drive
• PLC make: Siemens make plc
• Machine output: up to 2000 cups/cones per hour
• Round cup: max. dia = 80 mm, height = 75 mm
• Round cone: max. dia = 60 mm, height = 150 mm
• Power requirement: 0.5 hp motor, cycle: 50 htz,440 volt, 3 phase
• Air supply: 1000 liter/minute at 6 kg

Note:

• All the pneumatic components are pneumax / SMC make only.
• Air compressor will not to be supply with machine.
• Dry and moisture free air required for machine.
• The design & specifications of the machine.
• Illustrated herein are subject to change without notice.
