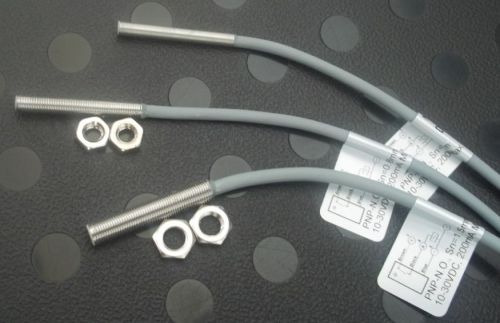

Inductive Ultra-mini Sensors

Ultra-mini inductive proximity sensors 1. Cylindrical diameter is from phi3, phi4 and m5. Max and min lengths available; 2. Rectangle size is 5*5mm; 3. Switching distance (sn) is from 0.6mm to 1.5mm; φ3 sn: 0.6mm, 0.8mm, 1mm; φ4 sn: 0.8mm, 1mm, 1.5mm; m4 sn: 0.6mm, 0.8mm, 1mm; m5 sn: 0.8mm, 1mm, 1.5mm; q5 sn: 0.8mm, 1mm, 1.5mm; 4. Operating voltage: 10-30vdc; 5. Short-circuit and reverse polarity protection; 6. Cable and pigtail type optional. 7. Standard: iec60947-5-2; 8. Protection degree: ip67 (iec60529)
