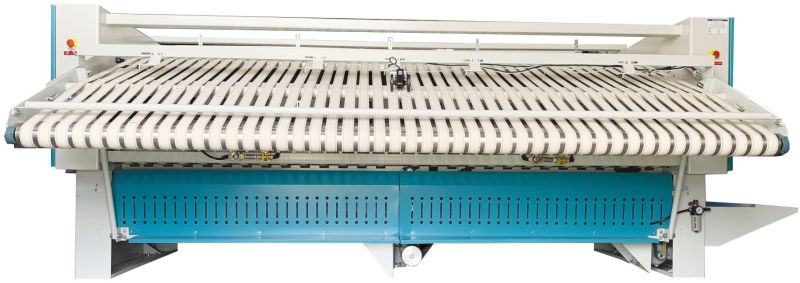

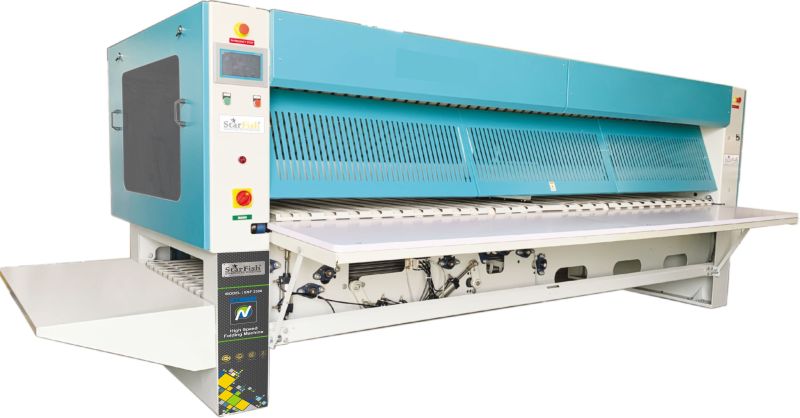

Industrial Bed Sheet Folder 3300 Mm SSF3300

₹ 10.48 Lakh / piece

Finger GuardYes
Country of Origin415
Motor Belt AdjustmentYes
No. of Blade3
Supply TypeManufacturer, Exporter, Supplier, Retailer, Trader
Preferred Buyer Location All over the world

Company Information

Member Since 8 Years
Nature of Business Retailer
GST No. 33AAFFN9290A1ZF

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Finger GuardYes
Country of Origin415
BendingCNC
Emergency SwitchYes
ModelSSF 3300
Nuts, Bolts and ConnectorsMild Steel
No. of Blade3
No. of Air Cutter2
WeldingLaser MIG/TIG
Working Width in mm3300
Dimension4300 x 3200 x 2100
Folding speed RPMAdjustable
Side CoverMild Steel
Volt415
No. of Fold5
Control PanelPCB
Motor BrandImported
Motor Power in Kw1.87
Brand NameStarfish
Base CoverMild Steel
LogoStarfish Engraving with LED Lights
Front PanelTouch Screen
MaterialPowder Coated
Meter ReaderElectronic
FoundationNot Required
Manual OperationYes
DoorsMild Steel with Lock
Control Box & LockMild Steel with Lock
Conveyor BeltCotton
Motor Belt AdjustmentYes
Working Speed m/min60
Base FrameMild Steel Channel
Air Inlet in mm12.5
Weight in Kgs2400
Air Pressure in MPA0.4-0.6
CuttingCNC

The machine measures the length of the fabric and calculates the folding length by controlling the speed and position of the fabric conveying system. It uses air jets and mechanical devices to fold the linen horizontally and vertically based on the sensor feedback signal. The machine can do four or five folds by using either a trowel structure or a lift plate structure.

The machine is mainly used after the ironing machine to replace manual work and save labor, reduce labor intensity, improve folding quality and efficiency, and control costs. It is an essential finishing equipment for large scale washing plants that want to save energy and increase efficiency. The machine has a patented anti-static device that can remove the static on the belts, preventing the linen and belts from sticking together during folding. It can adjust its speed according to the speed of different flatwork ironers. It can work with various flatwork ironers.

Stacker station is an optional.
Intelligent controller with Touch Screen.
Production counters per lane.
Measurement by photoelectric sensors.
All valves are pneumatically control.
By pass system. Precise & accurate folds.
Frequency inverter & Emergency stop.
Self Diagnosis function & Self Management
Programmable optional Single, Double and four lanes simultaneous folding.
Standard 1st, 2nd and 3rd folds by air 4th folds by knife and blade.

Optional: 1st and 2nd folds by air 3rd, 4th and 5th folds by knife and blade.

Note: Above mentioned price is based on the adult care service plan Tax and Transportation Charges are Extra). Prices may vary according to the size and models. [Please contact us to get the latest price & know more about our service plan]
