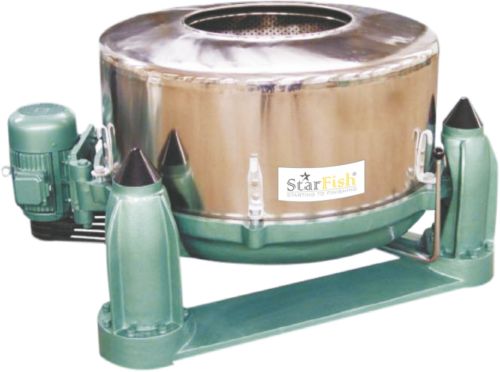

Starfish Industrial Hydro Extractor Non co-axial

₹ 4.20 Lakh / piece

Brand NameStarfish
Model NumberSNH 60
Dry Weight in Kg60
Volt415 / 3Ø
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Product Details

Brand NameStarfish
Model NumberSNH 60
Motor BrandSpecially Designed by us
Control Box (Optional)Mild Steel with Lock
Motor power in kw6
Centrifugal Effect (%)65-70
Door Open Cut OffLimit Switch
Volt415 / 3Ø
Weight in Kgs700
Liquor Ratio0:01:04
CuttingCNC
SpringsHelical Compression
Overall FinishGloss PU Paint
Base FrameMild Steel Plate
Drum Size in mmØ915 x 450
BendingCNC
PerforationTurret punch Press
LogoStandard Sticker
Drum with MotorNon Co-axially Connected with Bearing & Housing
Drain Outlet in mm75
Nuts, Bolts And ConnectorsMild Steel
BreakingManually with Braking pads
Extraction Time0-15 min controlled by timer
Over All Dimension in mm1250 x 1550 x 1150
FoundationRequired
Spring AdjustmentScrew Rod
WeldingMIG/TIG
Inner DrumStainless Steel 304 Grade
Outer DrumStainless Steel 304 Grade
Dry Weight in Kg60
VFD(Optional)Adjustable Drum Rotation 0-750 RPM
Rpm750
Control panelManually Operated by Switches
Drum Volume in Liter235

The Hydro Extractor Non-Co-Axial is compact and requires less maintenance with an all-stainless steel inner and outer drum of 304 grade.

It is available. mechanical braking systems (which are supervised and controlled by human effort).

It is an unbroken and steadfast tool functioning on the unique principle of centrifugal force.

Water extraction to 70% ensures very little moisture preservation.

This hydro extractor machine has three suspension legs to reduce vibration caused by an unbalanced rotating fabric or material.

The internal rotating perforated basket is dynamically balanced, and the body structure is made of graded cast iron provided with heavy-duty steel springs that ensure less vibration.

Note: Above mentioned price is based on the adult care service plan (Note: Tax and Transportation Charges are Extra). Prices may vary according to the size and models. [Please contact us to get the latest price & know more about our service plan]
