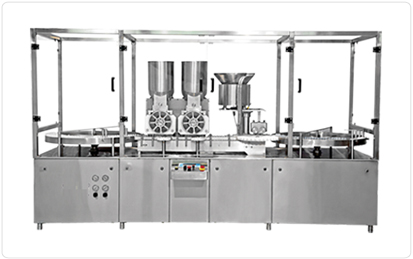

Injectable dry powder filling machine

Container Height36mm to 75mm
Container Dia25mm to 38mm
Rubber Stopper20mm Buty
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

SALIENT FEATURES “No Container - No Filling” system eliminates wastage of costly powders Machine can be operated in Single Stroke to Four Stroke and provide output up to 50 fills per minute with....

View More Details

Send Enquiry

Company Information

Harsiddh Sterilepack (India) Pvt Ltd.

Kathwada, Ahmedabad, Gujarat

View Number

Member Since 8 Years
Nature of Business Manufacturer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

SALIENT FEATURES

“No Container - No Filling” system eliminates wastage of costly powders
Machine can be operated in Single Stroke to Four Stroke and provide output up to 50 fills per minute with an accuracy of ± 2% depending upon powder type and fill size.
All parts coming in contact with the product are made out of S.S 316 material and easily removable for mandatory autoclaving/sterilization.
Totally enclosed heavy steel structure body to avoid any vibration.
Variable AC Frequency drive for speed adjustment.
Endless conveyor belt to prevent jamming of assembly due to spillage of powder.

TECHNICAL SPECIFICATION Product Rate :

30 to 120 Fills/Min. (HPF 120)

Fill Capacity :

50mg to 1.5 grams with the help of change parts.

Accuracy :

± 1% depending upon consistency and uniformity of bulk density of Injectable Powder under controlled level of humidity (Below 28% Rh)

Power Specification :

1.5 H.P., 3 Phase, 4 Wire System, 50 Hz.

Utility :

Compressed Air: Max. 2 Kg./Cm² Oil Free
Vacuum: 25 Hg. @ 300 LPM Displacement
Relational Humidity: Below 28%

Optional Accessories :

Pure Air Filter, Vacuum Pump
Programmable Logic Control (System) with MMI
Oil Free Air Compressor
Aluminum Profile Cabinet covering full machine
Online Pre-Media Filling Arrangement

Overall Dimension :

2100mm (L) X 850mm (W) X 1700mm (H)
Net Weight: 655 Kgs. Gross Weight: 1010 Kgs.
