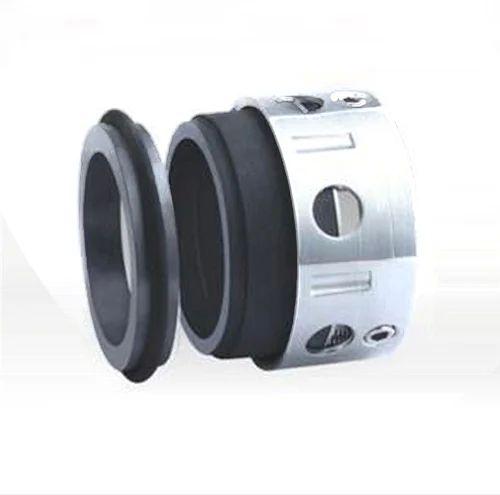

SS304 Polished Stainless Steel John Crane 881 Replacement Seal 30mm

₹ 3,600 / Piece

MaterialStainless Steel
FinishingPolished
Material GradeSS304
Net Weight2 kg
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

4.6/5

Member Since 10 Years
Nature of Business Retailer
GST No. 33AVHPG4114B1ZD

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Surface of ApplicationIndustrial
Usageindustrial pumps in chemical, petrochemical, water, and oil & gas sectors,Industrial
CertificationISO 9001:2008 Certified
Packaging TypeCarton Box
Working Pressure14–23 bar
Sealing TypeMechanical
Number Of FlowerMechanical Seals
Working Temperature–40 °C to +260 °C
Shaft Diameter30 mm
Total Carbohydrate1 Year
Country of OriginIndia
Inner Diameter30mm
Temperature–40 °C to +260 °C
Tolerance–40 °C to +260 °C
Net Weight2 kg
Speed25 m/s
Pressure (Bar)14–23 bar
Shaft Speed in RPM5,000 fpm
Temperature Range Deg C–40 °C to +260 °C
I Deal InNew Only
Size (Inches)30 mm
MaterialStainless Steel
FinishingPolished
Material GradeSS304
ShapeCylindrical
ConditionNew
Pressure14–23 bar

the John Crane 881 cartridge seal provides a versatile, easy-to-fit sealing solution with robust pressure, temperature, and speed characteristics. Ideal for industrial pumps across multiple sectors, it delivers reliable performance with minimal maintenance.

\\\ Materials & Component Details\\\

\\\
Metal Components: Precision-machined gland and sleeve, typically SS316 or similar corrosion-resistant alloys .
\\\
\\\
Seal Faces: Carbon graphite vs silicon carbide or tungsten carbide—available in balanced configurations depending on pressure needs.
\\\Operating Performance\\\

\\\
- \\\
  Temperature Range: –40 °C to +260 °C (–40 °F to +500 °F), depending on material choices .
  \\\
- \\\
  Pressure Rating:
  \\\
  - \\\
    8‑1: ~22.8 bar (325 psi)
    \\\
  - \\\
    8‑1T (narrow version): ~13.8 bar (200 psi)
    .
    Type 8B1/8B1T variants (high-pressure) offer higher ratings, up to 76 bar .
    \\\
  \\\
- \\\
  Speed Capability: Up to 25 m/s (~5,000 fpm); rotating‑seat option allows higher speeds
  \\\Applications & Suitability\\\

  \\\
  - \\\
    Ideal for general-purpose industrial pumps in chemical, petrochemical, water, and oil & gas sectors.
    \\\
  - \\\
    Suitable for high-pressure, high-speed applications when using balanced Type 8B1 variants or rotating-seat versions.
    \\\
  - \\\
    Certification & Compatibility: Meets industry norms like API, ISO for cartridge / pusher seals. Fully compatible with seal support systems and face technologies from John Crane
    \\\
  \\\
\\\
