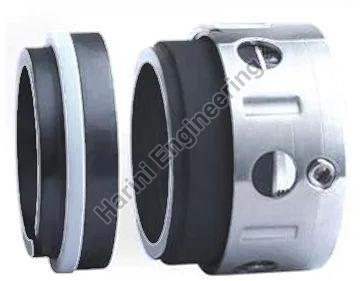

Polished SS304 John Crane T59B Replacement Seal 18 mm to 95 mm

₹ 2,500 - ₹ 3,500 / Piece

Material GradeSS304
FinishingPolished
MaterialStainless Steel
Net Weight50–150 g depending on size
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

4.6/5

Member Since 10 Years
Nature of Business Retailer
GST No. 33AVHPG4114B1ZD

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

PressureUp to 62 bar
Automation GradeMulti-spring design for balanced load
UsagePumps/compressors in general/high-pressure, corrosive, cryogenic, high-temp
CertificationEN 12756 (DIN 24960/ISO 3069), API 610
DensityPTFE ≈ 2.2 g/cm³, SS ≈ 8 g/cm³
Packaging TypeCarton Box
Outer Diameter60 mm - 400mm
Working PressureUp to 62 bar
Sealing TypeBalanced PTFE wedge, multi-spring, pusher style
Size (Inches)18 mm to 95 mm
Thickness~4 mm (varies by size)
Working Temperature-50 °C to 400 °C
Shaft Diameter18 mm to 95 mm
Total Carbohydrate1 Year
Inner Diameter45 mm in typical model); varied for each size
TemperatureChemical, refinery, pharma, cryogenic, high-temp applications
Net Weight50–150 g depending on size
SpeedUp to 25 m/s
Chemical ResistanceYes
Pressure (Bar)62 bar
Shaft Speed in RPM~5,000 fpm
Temperature Range Deg C-50 °C to +400 °C
Face CoatingPTFE wedge; optional face materials may include Diamond treatment
Burgman TypeEquivalent to Burgmann BT‑C5.KB
Country of OriginIndia
John Crane Type59B (balanced), counterpart 59U (unbalanced)
Number Of FlowerIndustrial Seals
Seal WireStandard o-ring or S-ring made of FKM or equivalent for PTFE wedge
Surface of ApplicationIndustrial
I Deal InNew Only
ShapeRound
Material GradeSS304
FinishingPolished
MaterialStainless Steel
ConditionNew

The John Crane Type 59B Replacement Seal is a high-performance, general-purpose DIN-balanced, multispring PTFE wedge mechanical seal, specifically engineered for demanding industrial applications. It is part of John Crane’s Type 59 series—a renowned lineup designed to comply with DIN 24960/L1K, ISO 3069, and API 610 standards, ensuring compatibility with a wide range of rotary equipment in chemical, petrochemical, refinery, and pharmaceutical industries
At its core, the Type 59B features a hydraulically balanced seal face, which significantly lowers mechanical load on seal faces during operation at higher pressures. This balancing reduces friction and heat generation, prolonging both seal lifespan and reliability under extreme conditions
