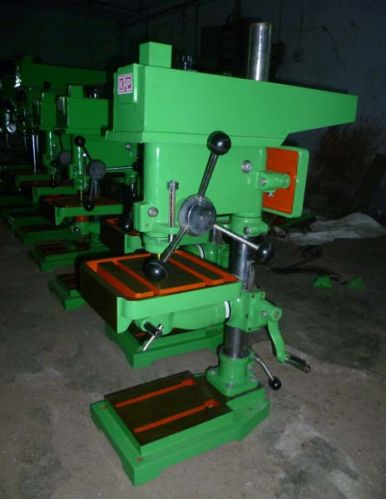

K.R.Panchal Bench Drilling Machine 13mm(13SSR), Color : SPECIAL GREEN

₹ 16,000 - ₹ 22,500 / Piece

MOQ1 Piece(s)
Brand NameK.R.Panchal
ConditionNew
Country of OriginIndia
Number Of FlowerHeavy Duty Pillar Type Bench Drilling
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Company Information

Member Since 17 Years
Nature of Business Manufacturer
GST No. 24AOJPP2789L1Z9

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Number Of FlowerHeavy Duty Pillar Type Bench Drilling
Brand NameK.R.Panchal
ConditionNew
Country of OriginIndia
CAST MATERIALS.G IRON, C.I, M.S, ALUMINIUM
BEARING SETSKF
PACKINGWOODENCASE, GOONY, PLASTIC BAG

We are offering 13mm bench type pillar drilling machine (new)
(13shsr 13ssr)
technical specifiactions & general dimensions:
model no. 13 shsr 13 ssr
drllng capacity in steel 13 13
no. Of spindle speeds 4 4
range of speeds 500-2825 500-2825
spindle taper mt - 1 solid
dist. Between spindle
center to column 177 177
spindle travel 80 80
size of square table 241x235 241x235
max. Dist. Between spindle
nose to working table 356 356
max.distance between
spindle nose to base plate 510 510
column diameter 46.1 46.1
size of base plate 406x255 406x255
net weight of machine 58 58
overall dimension
of machine 755x410x355 755x410x355
electric motor 0.5 hp1440 rpm 0.5 hp1440 rpm
v-belt size 2370 2370
standard accessories
motor pulley, drill drift(13shsr)
extra accessories
drill chuck, rf switch, ‘v’- belt, electric motor, arbour(13shsr)
specifiaction may be changed without prior notice in case of the desgin modification
